Design Multimodal File Ingestion and Retrieval

Interview framing: This is Dropbox-like at the storage layer, but the real question is about AI-native ingestion, parsing, embeddings, hybrid retrieval, citations, and permission-safe RAG.

A Dropbox-style system focuses on file upload, storage, folder organization, sharing, sync, and download. A multimodal ingestion and retrieval system starts with those same foundations, then adds a pipeline that understands file contents across text, PDF, images, slides, audio, video, tables, and code.

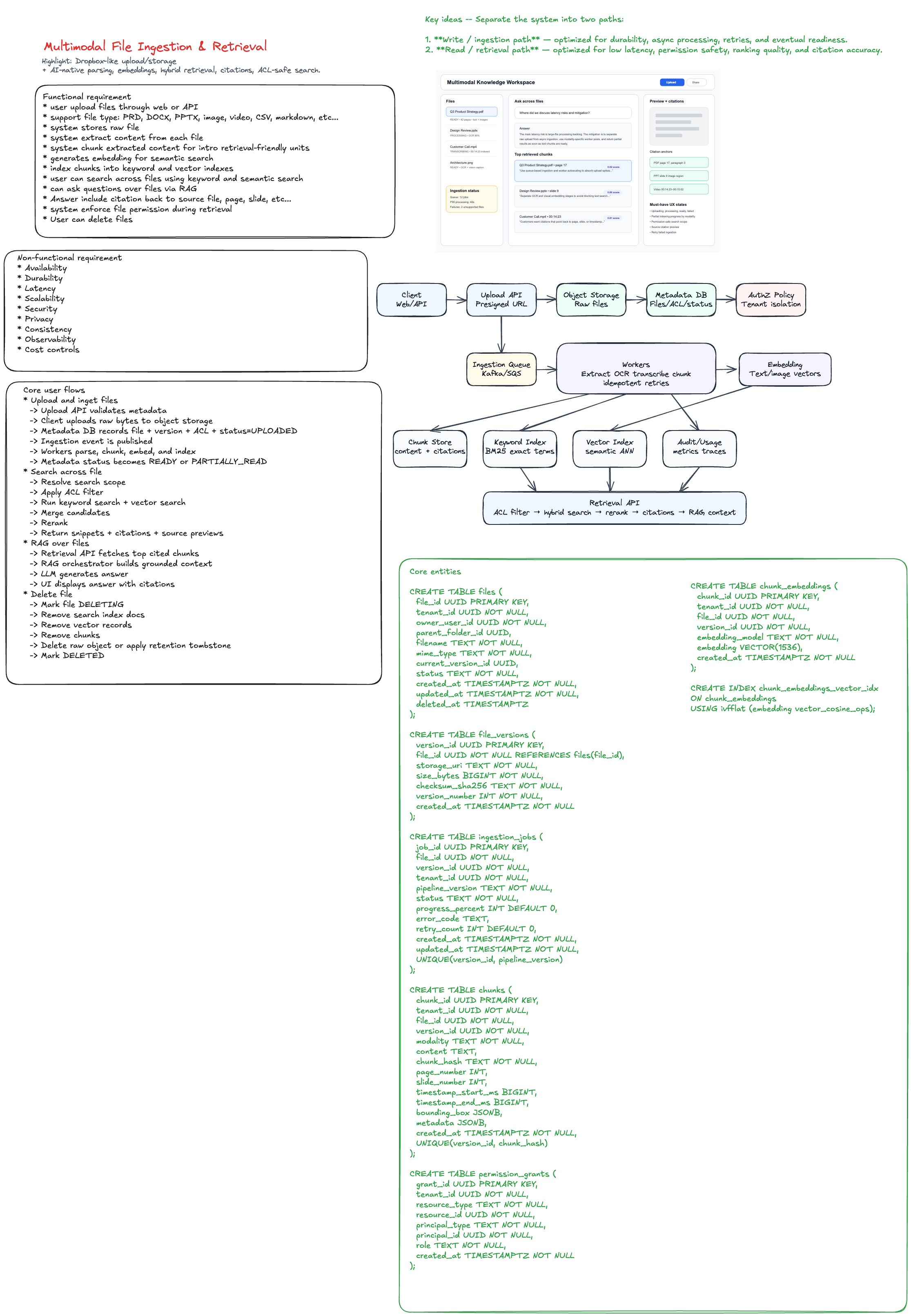

Multimodal file component architecture and request flow

1. One-Minute Interview Answer

I would design the system in two halves: an async ingestion platform and a low-latency retrieval platform. Uploads go to object storage first, metadata and ACLs are written to a relational metadata store, and an ingestion event is published. Workers parse files by modality, extract text/OCR/transcripts/tables/images, create structure-aware chunks, generate embeddings, and index chunks into both a keyword index and vector index. Retrieval applies permission filters first, performs hybrid search, reranks candidates, and returns cited chunks for search or RAG. The hardest parts are idempotent ingestion, deletion consistency, permission-safe retrieval, ranking quality, and handling large files at scale.

UX states to show in interview

UX Surface	What it should show	Why it matters
File list	Uploading, processing, ready, failed	Users need trust and progress visibility
Ingestion status	OCR/transcription/chunking progress	Multimodal processing can be slow
Search box	Scope selection: one file, folder, workspace	Prevents accidental broad retrieval
Results	Snippet, file, page/slide/timestamp, score	Makes retrieval explainable
Preview panel	Source preview with citation anchor	Users can verify answer grounding
Error state	Unsupported file, parse failure, retry	Operational transparency

4. Functional Requirements

Must-have

Users can upload files through web or API.
Supported file types: PDF, DOCX, PPTX, images, audio, video, CSV/XLSX, Markdown, plain text, and code.
System stores raw files durably.
System extracts content from each file.
System chunks extracted content into retrieval-friendly units.
System generates embeddings for semantic search.
System indexes chunks into keyword and vector indexes.
Users can search across files using keyword and semantic search.
Users can ask questions over files using RAG.
Answers include citations back to source file, page, slide, timestamp, image region, or row.
System enforces file permissions during retrieval.
Users can delete files and expect raw files, chunks, embeddings, and indexes to be deleted.

Nice-to-have

Folder-level ingestion.
File version history.
Incremental re-indexing for edited files.
Near-real-time indexing for small files.
Shared workspace search.
Admin audit logs.
Custom retention policies.
Human feedback on search quality.

5. Non-Functional Requirements

Requirement	Target / Design Direction
Availability	Upload and retrieval should remain available even if ingestion is delayed
Durability	Raw files should be stored in object storage with checksum validation
Latency	Retrieval p95 under ~300–800 ms before LLM generation
Scalability	Ingestion workers scale by queue depth and file type
Security	Tenant isolation, ACL filtering, encryption, audit logs
Privacy	No unauthorized chunk retrieval; deletion propagates to all indexes
Consistency	File status can be eventually consistent, but permission checks must be strongly enforced
Observability	Track ingestion latency, parse failures, queue lag, retrieval recall, empty results
Cost control	Batch embeddings, cap large files, use lifecycle policies

6. Core User Flows

6.1 Upload and ingest file

User uploads file
  -> Upload API validates metadata
  -> Client uploads raw bytes to object storage
  -> Metadata DB records file + version + ACL + status=UPLOADED
  -> Ingestion event is published
  -> Workers parse, chunk, embed, and index
  -> Metadata status becomes READY or PARTIALLY_READY

6.2 Search across files

User query
  -> Resolve search scope
  -> Apply ACL filter
  -> Run keyword search + vector search
  -> Merge candidates
  -> Rerank
  -> Return snippets + citations + source previews

6.3 RAG over files

User asks question
  -> Retrieval API fetches top cited chunks
  -> RAG orchestrator builds grounded context
  -> LLM generates answer
  -> UI displays answer with citations

6.4 Delete file

User deletes file
  -> Mark file DELETING
  -> Remove search index docs
  -> Remove vector records
  -> Remove chunks
  -> Delete raw object or apply retention tombstone
  -> Mark DELETED

7. Core Entities

Entity	Purpose
`Tenant`	Organization or workspace boundary
`User`	Actor uploading/searching files
`File`	Logical file object
`FileVersion`	Immutable uploaded version
`IngestionJob`	Tracks processing state for a file version
`Chunk`	Retrieval unit extracted from a file
`Embedding`	Vector representation of a chunk
`PermissionGrant`	ACL for users, groups, roles, folders
`SearchQuery`	Logged query for observability and quality
`Citation`	Pointer from retrieved answer to source location
`DeletionJob`	Tracks cleanup across stores and indexes

8. Schema Design

8.1 Relational metadata schema

Use Postgres for a simple version, or Spanner/CockroachDB for global scale.

CREATE TABLE files (
  file_id UUID PRIMARY KEY,
  tenant_id UUID NOT NULL,
  owner_user_id UUID NOT NULL,
  parent_folder_id UUID,
  filename TEXT NOT NULL,
  mime_type TEXT NOT NULL,
  current_version_id UUID,
  status TEXT NOT NULL,
  created_at TIMESTAMPTZ NOT NULL,
  updated_at TIMESTAMPTZ NOT NULL,
  deleted_at TIMESTAMPTZ
);

CREATE TABLE file_versions (
  version_id UUID PRIMARY KEY,
  file_id UUID NOT NULL REFERENCES files(file_id),
  storage_uri TEXT NOT NULL,
  size_bytes BIGINT NOT NULL,
  checksum_sha256 TEXT NOT NULL,
  version_number INT NOT NULL,
  created_at TIMESTAMPTZ NOT NULL
);

CREATE TABLE ingestion_jobs (
  job_id UUID PRIMARY KEY,
  file_id UUID NOT NULL,
  version_id UUID NOT NULL,
  tenant_id UUID NOT NULL,
  pipeline_version TEXT NOT NULL,
  status TEXT NOT NULL,
  progress_percent INT DEFAULT 0,
  error_code TEXT,
  retry_count INT DEFAULT 0,
  created_at TIMESTAMPTZ NOT NULL,
  updated_at TIMESTAMPTZ NOT NULL,
  UNIQUE(version_id, pipeline_version)
);

CREATE TABLE chunks (
  chunk_id UUID PRIMARY KEY,
  tenant_id UUID NOT NULL,
  file_id UUID NOT NULL,
  version_id UUID NOT NULL,
  modality TEXT NOT NULL,
  content TEXT,
  chunk_hash TEXT NOT NULL,
  page_number INT,
  slide_number INT,
  timestamp_start_ms BIGINT,
  timestamp_end_ms BIGINT,
  bounding_box JSONB,
  metadata JSONB,
  created_at TIMESTAMPTZ NOT NULL,
  UNIQUE(version_id, chunk_hash)
);

CREATE TABLE permission_grants (
  grant_id UUID PRIMARY KEY,
  tenant_id UUID NOT NULL,
  resource_type TEXT NOT NULL,
  resource_id UUID NOT NULL,
  principal_type TEXT NOT NULL,
  principal_id UUID NOT NULL,
  role TEXT NOT NULL,
  created_at TIMESTAMPTZ NOT NULL
);

8.2 Vector index schema

For small/medium scale, use pgvector. For large scale, use Milvus, Pinecone, Weaviate, Vespa, or FAISS-backed service.

CREATE TABLE chunk_embeddings (
  chunk_id UUID PRIMARY KEY,
  tenant_id UUID NOT NULL,
  file_id UUID NOT NULL,
  version_id UUID NOT NULL,
  embedding_model TEXT NOT NULL,
  embedding VECTOR(1536),
  created_at TIMESTAMPTZ NOT NULL
);

CREATE INDEX chunk_embeddings_vector_idx
ON chunk_embeddings
USING ivfflat (embedding vector_cosine_ops);

8.3 Search index document

Example OpenSearch document:

{
  "chunkId": "chunk_123",
  "tenantId": "tenant_abc",
  "fileId": "file_456",
  "versionId": "version_789",
  "filename": "Q3 Product Strategy.pdf",
  "modality": "text",
  "content": "Use queue-based ingestion and worker autoscaling...",
  "pageNumber": 17,
  "aclPrincipals": ["user_1", "group_product", "role_admin"],
  "createdAt": "2026-06-19T00:00:00Z"
}

Important: ACL data can be duplicated into the search index for fast filtering, but the retrieval API should still have a trusted authorization layer for sensitive use cases.

9. API Design

9.1 Create upload session

POST /v1/files/upload-sessions

{
  "filename": "design-review.pdf",
  "mimeType": "application/pdf",
  "sizeBytes": 12500000,
  "parentFolderId": "folder_123"
}

Response:

{
  "fileId": "file_123",
  "versionId": "version_001",
  "uploadUrl": "https://object-store/presigned-url",
  "expiresAt": "2026-06-19T12:10:00Z"
}

9.2 Complete upload

POST /v1/files/{fileId}/versions/{versionId}/complete

{
  "checksumSha256": "abc123"
}

Response:

{
  "fileId": "file_123",
  "versionId": "version_001",
  "status": "PROCESSING"
}

9.3 Get ingestion status

GET /v1/files/{fileId}/status

{
  "fileId": "file_123",
  "status": "PARTIALLY_READY",
  "stages": [
    { "name": "text_extraction", "status": "READY" },
    { "name": "ocr", "status": "PROCESSING", "progressPercent": 80 },
    { "name": "embedding", "status": "PENDING" }
  ]
}

9.4 Search files

POST /v1/retrieval/search

{
  "query": "Where did we discuss latency mitigation?",
  "scope": {
    "fileIds": ["file_123"],
    "folderIds": ["folder_456"]
  },
  "mode": "hybrid",
  "topK": 10
}

Response:

{
  "results": [
    {
      "chunkId": "chunk_123",
      "fileId": "file_123",
      "filename": "Q3 Product Strategy.pdf",
      "score": 0.92,
      "snippet": "Use queue-based ingestion and worker autoscaling...",
      "citation": {
        "type": "pdf_page",
        "pageNumber": 17,
        "boundingBox": { "x": 0.12, "y": 0.32, "w": 0.66, "h": 0.18 }
      }
    }
  ]
}

9.5 Ask over files

POST /v1/retrieval/answer

{
  "question": "Summarize the latency mitigation plan.",
  "scope": {
    "workspaceId": "workspace_123"
  },
  "topK": 8,
  "requireCitations": true
}

Response:

{
  "answer": "The plan is to decouple upload from processing, use async queues, and autoscale workers by file type.",
  "citations": [
    {
      "fileId": "file_123",
      "filename": "Q3 Product Strategy.pdf",
      "pageNumber": 17,
      "chunkId": "chunk_123"
    }
  ]
}

9.6 Delete file

DELETE /v1/files/{fileId}

Response:

{
  "fileId": "file_123",
  "status": "DELETING"
}

10. Technology Choices

Layer	Recommended Choice	Why
Frontend	React / Next.js + TypeScript	Fast UI iteration, upload progress, chat/search UX
Upload transport	Presigned S3/GCS URLs	Avoid routing large bytes through app servers
Raw storage	S3 / GCS / Azure Blob	Durable, scalable, lifecycle policies
Metadata DB	Postgres initially; Spanner/CockroachDB globally	Strong relational model for files, versions, ACLs
Queue	Kafka, SQS, or Pub/Sub	Async ingestion, retries, backpressure
Workers	Kubernetes + autoscaling	Scale by queue depth and modality
Text extraction	Apache Tika, Unstructured, pdfium/poppler	Broad file support
OCR	Tesseract, Textract, Document AI, Vision API	Image/PDF OCR
Audio transcription	Whisper-style service or managed speech-to-text	Audio/video retrieval
Embeddings	Text/image/multimodal embedding service	Semantic retrieval
Keyword search	OpenSearch / Elasticsearch / Vespa	BM25, filters, exact match
Vector search	pgvector for v1; Milvus/Pinecone/Vespa at scale	ANN semantic retrieval
Reranking	Cross-encoder or LLM reranker	Improves top-K relevance
Observability	Prometheus, Grafana, OpenTelemetry	Pipeline and query tracing

Interview recommendation

For a practical interview answer:

I would start with S3 + Postgres + SQS/Kafka + Kubernetes workers + OpenSearch + pgvector. If scale grows, I would move vector retrieval to Milvus/Vespa/Pinecone and metadata to Spanner/CockroachDB for multi-region consistency.

11. Ingestion Pipeline Design

11.1 Pipeline stages

Validate
  -> Detect file type
  -> Extract raw content
  -> Normalize content
  -> Chunk by structure
  -> Generate embeddings
  -> Write chunk store
  -> Write keyword index
  -> Write vector index
  -> Mark file READY

11.2 Modality-specific processing

Modality	Extraction Strategy	Citation Anchor
PDF	Text extraction + OCR fallback + layout parsing	Page + bounding box
DOCX	Paragraphs, headings, tables	Section + paragraph
PPTX	Slide text, notes, images, OCR	Slide + object region
Image	OCR + caption + image embedding	Image region
Audio	Speech-to-text + speaker/time segments	Timestamp range
Video	Audio transcript + sampled frames	Timestamp + frame
CSV/XLSX	Table headers, rows, schema summary	Sheet + row range
Code	Symbols, functions, imports, comments	File path + line range

11.3 Idempotency

Workers must safely handle duplicate events.

Use this idempotency key:

idempotencyKey = versionId + pipelineVersion + stageName

For chunks:

chunkHash = sha256(versionId + normalizedContent + locationAnchor)

This prevents duplicate chunks when workers retry.

12. Retrieval Design

12.1 Hybrid search

Use both keyword and vector search.

Candidates = BM25(query) UNION VectorSearch(embedding(query))
Filtered = ACLFilter(Candidates, user)
Ranked = Rerank(query, Filtered)
Return top K with citations

12.2 Why hybrid search?

Query Type	Best Retrieval Method
Exact product name	Keyword search
Error code	Keyword search
“What was the mitigation plan?”	Vector search
Acronyms and IDs	Keyword search
Conceptual similarity	Vector search
Final user-facing result	Hybrid + reranking

12.3 Permission-safe retrieval

The most important security rule:

The system must never retrieve or pass unauthorized chunks to the model.

Recommended pattern:

Resolve user identity and tenant.
Resolve allowed file/folder/workspace scope.
Push ACL filter into keyword and vector retrieval when possible.
Re-check permissions in Retrieval API before returning chunks.
Only pass authorized chunks to the LLM.

13. Design Tradeoffs

Decision	Option A	Option B	Recommendation
Ingestion	Sync during upload	Async after upload	Async for scalability and UX
Chunking	Fixed-size chunks	Structure-aware chunks	Structure-aware for citations and quality
Search	Keyword only	Vector only	Hybrid search
ACL filtering	Post-filter only	Pre-filter + re-check	Pre-filter + trusted re-check
File versions	Mutate in place	Immutable versions	Immutable versions
Delete	Best-effort async	Tracked deletion job	Tracked deletion job
Embeddings	One model for all	Modality-specific embeddings	Start simple, expand by modality

14. Testing Strategy

14.1 Unit tests

MIME validation.
PDF text extraction.
OCR fallback.
Transcript segmentation.
Table parser.
Code symbol parser.
Chunk boundary logic.
Citation anchor generation.
Embedding request batching.

14.2 Integration tests

Upload PDF
  -> object stored
  -> metadata created
  -> ingestion event emitted
  -> chunks generated
  -> embeddings written
  -> search index updated
  -> retrieval returns expected page citation

14.3 Permission tests

Owner can retrieve own file.
Shared user can retrieve shared file.
Unshared user cannot retrieve file.
Removed user immediately loses access.
Vector search cannot leak unauthorized chunks.
RAG context contains only authorized chunks.

14.4 Idempotency tests

Same ingestion event processed twice creates one job.
Worker retry does not duplicate chunks.
Re-indexing same version and pipeline version is stable.
New pipeline version can intentionally create new chunks.

14.5 Deletion tests

Delete removes metadata visibility.
Delete removes keyword index documents.
Delete removes vector embeddings.
Delete removes chunk records.
Delete removes raw object or applies retention policy.
Deleted file never appears in RAG context.

14.6 Retrieval quality tests

Use a golden set of files, queries, and expected chunks.

Metrics:

Metric	Meaning
Recall@K	Expected chunk appears in top K
Precision@K	Top K chunks are relevant
MRR	Correct result appears early
Citation accuracy	Citation points to the right source region
Answer groundedness	Generated answer is supported by retrieved chunks
Empty-result rate	Search quality and ingestion coverage signal

14.7 Load tests

Upload spike with many small files.
Few huge videos.
Large PDFs with OCR fallback.
Concurrent retrieval queries.
Vector index p95 latency.
Queue backlog and worker autoscaling.
Re-index entire workspace.

15. Observability

Ingestion metrics

Upload success rate.
Queue depth by file type.
Worker processing latency by stage.
Parse failure rate by MIME type.
OCR/transcription latency.
Embedding latency and cost.
Index write latency.
Time from upload to READY.

Retrieval metrics

Query latency p50/p95/p99.
Keyword search latency.
Vector search latency.
Reranker latency.
Top-K recall on golden set.
Empty-result rate.
Permission-denied count.
Citation click-through rate.
User feedback score.

Security metrics

Unauthorized access attempts.
ACL filter mismatch.
Deletion lag.
Cross-tenant query attempts.
Sensitive-file access audit trail.

16. Failure Modes and Mitigations

Failure	Mitigation
Ingestion worker crashes	Queue retry + idempotent stages
Poison file repeatedly fails	Dead-letter queue + user-visible failure state
Huge file overwhelms workers	File size limits, chunk streaming, separate heavy worker pool
Embedding service unavailable	Mark partial-ready, retry embeddings later
Search index write fails	Retry index writes, reconciliation job
ACL changes not reflected in index	Trusted permission re-check before returning chunks
Delete partially fails	Deletion job with retries and tombstone state
Vector search returns stale chunks	Filter by active version and file status
OCR quality is poor	Show confidence, allow fallback to original preview

17. Frontend Design Details

Key frontend components

FileWorkspacePage
  ├── UploadDropzone
  ├── FileList
  ├── IngestionStatusPanel
  ├── SearchAndAskBox
  ├── RetrievalResultsList
  ├── SourcePreviewPanel
  └── CitationViewer

Client state model

type FileStatus =
  | 'UPLOADING'
  | 'UPLOADED'
  | 'PROCESSING'
  | 'PARTIALLY_READY'
  | 'READY'
  | 'FAILED'
  | 'DELETING'
  | 'DELETED';

type FileItem = {
  fileId: string;
  filename: string;
  mimeType: string;
  status: FileStatus;
  progressPercent?: number;
  supportedModalities: Array<'text' | 'image' | 'audio' | 'video' | 'table' | 'code'>;
  createdAt: string;
};

type RetrievalResult = {
  chunkId: string;
  fileId: string;
  filename: string;
  snippet: string;
  score: number;
  citation: {
    type: 'page' | 'slide' | 'timestamp' | 'image_region' | 'row' | 'line_range';
    pageNumber?: number;
    slideNumber?: number;
    timestampStartMs?: number;
    timestampEndMs?: number;
    lineStart?: number;
    lineEnd?: number;
  };
};

UX performance techniques

Upload directly to object storage using presigned URLs.
Show optimistic file row immediately after upload starts.
Poll or subscribe to ingestion status updates.
Virtualize large file lists and result lists.
Lazy-load source previews.
Stream RAG answer tokens while citations are already visible.
Cache recent query results by query + scope + version.

1. One-Minute Interview Answer​

UX states to show in interview​

4. Functional Requirements​

Must-have​

Nice-to-have​

5. Non-Functional Requirements​

6. Core User Flows​

6.1 Upload and ingest file​

6.2 Search across files​

6.3 RAG over files​

6.4 Delete file​

7. Core Entities​

8. Schema Design​

8.1 Relational metadata schema​

8.2 Vector index schema​

8.3 Search index document​

9. API Design​

9.1 Create upload session​

9.2 Complete upload​

9.3 Get ingestion status​

9.4 Search files​

9.5 Ask over files​

9.6 Delete file​

10. Technology Choices​

Interview recommendation​

11. Ingestion Pipeline Design​

11.1 Pipeline stages​

11.2 Modality-specific processing​

11.3 Idempotency​

12. Retrieval Design​

12.1 Hybrid search​

12.2 Why hybrid search?​

12.3 Permission-safe retrieval​

13. Design Tradeoffs​

14. Testing Strategy​

14.1 Unit tests​

14.2 Integration tests​

14.3 Permission tests​

14.4 Idempotency tests​

14.5 Deletion tests​

14.6 Retrieval quality tests​

14.7 Load tests​

15. Observability​

Ingestion metrics​

Retrieval metrics​

Security metrics​

16. Failure Modes and Mitigations​

17. Frontend Design Details​

Key frontend components​

Client state model​

UX performance techniques​

1. One-Minute Interview Answer

UX states to show in interview

4. Functional Requirements

Must-have

Nice-to-have

5. Non-Functional Requirements

6. Core User Flows

6.1 Upload and ingest file

6.2 Search across files

6.3 RAG over files

6.4 Delete file

7. Core Entities

8. Schema Design

8.1 Relational metadata schema

8.2 Vector index schema

8.3 Search index document

9. API Design

9.1 Create upload session

9.2 Complete upload

9.3 Get ingestion status

9.4 Search files

9.5 Ask over files

9.6 Delete file

10. Technology Choices

Interview recommendation

11. Ingestion Pipeline Design

11.1 Pipeline stages

11.2 Modality-specific processing

11.3 Idempotency

12. Retrieval Design

12.1 Hybrid search

12.2 Why hybrid search?

12.3 Permission-safe retrieval

13. Design Tradeoffs

14. Testing Strategy

14.1 Unit tests

14.2 Integration tests

14.3 Permission tests

14.4 Idempotency tests

14.5 Deletion tests

14.6 Retrieval quality tests

14.7 Load tests

15. Observability

Ingestion metrics

Retrieval metrics

Security metrics

16. Failure Modes and Mitigations

17. Frontend Design Details

Key frontend components

Client state model

UX performance techniques
