Leetcode design

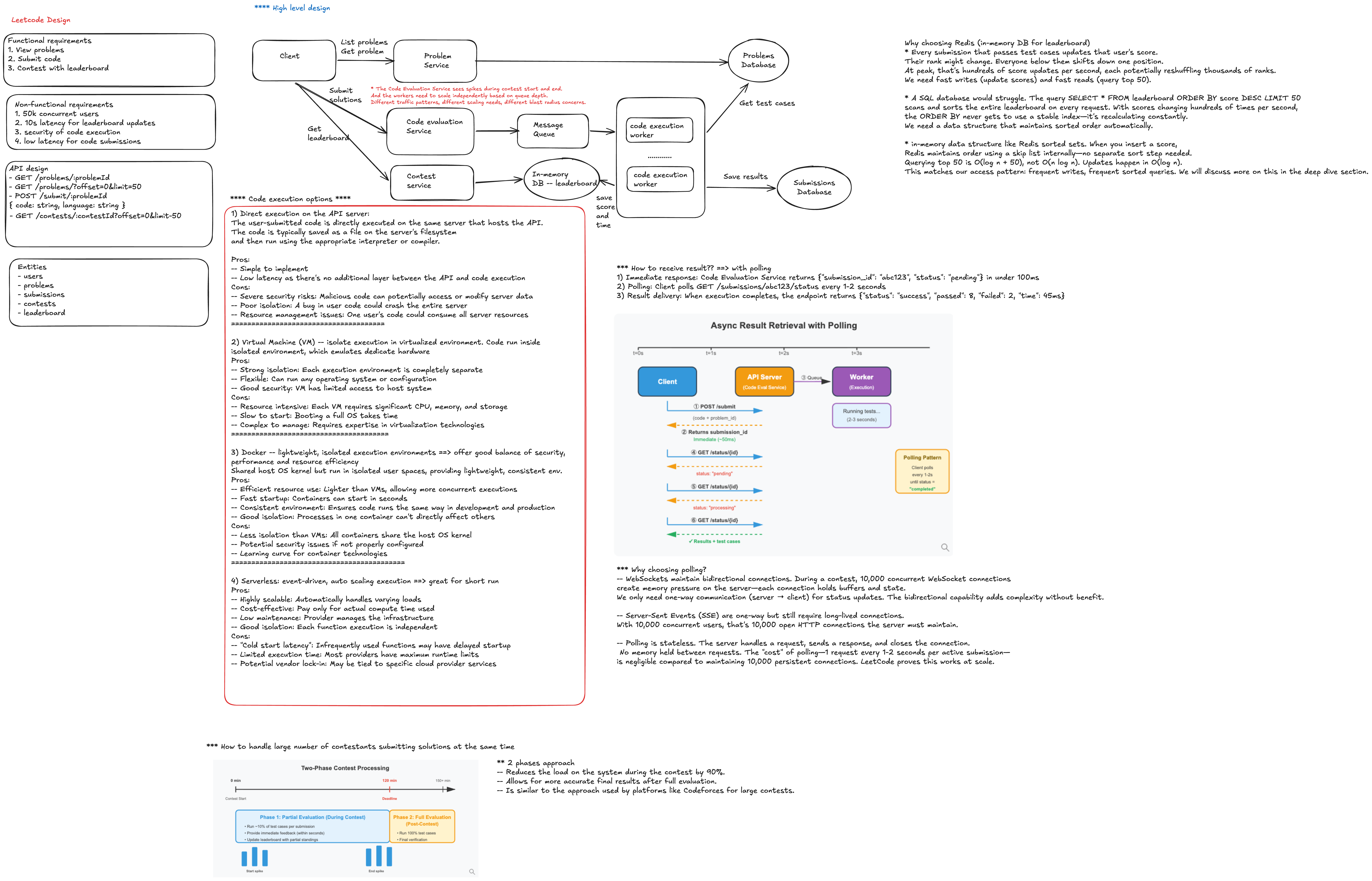

High level architecture and request flow

Problem Context

Design a LeetCode-style platform that supports:

Online code execution for user submissions
Real-time contest judging
Real-time leaderboard updates
10k concurrent users during contests
Strong isolation for untrusted code
Durable contest state and disaster recovery
Abuse prevention and security controls

This is a staff-level design discussion, so the goal is not only to describe components, but also to explain trade-offs, failure modes, operational posture, and how engineering, product, security, and operations align around the system.

1. Executive Summary

At a high level, I would split the system into two critical paths:

Code execution path
- Accept user submission
- Persist submission metadata
- Enqueue judging job
- Execute code in an isolated sandbox
- Produce verdict
- Persist result
- Notify user
Leaderboard path
- Consume accepted submission events
- Compute score and penalty
- Update real-time ranking cache
- Persist contest scoring state durably
- Broadcast ranking deltas to clients

The key staff-level principle is:

The execution system is latency-sensitive, adversarial, and resource-heavy. The leaderboard system is correctness-sensitive, highly visible, and must be recoverable. I would optimize them differently while connecting them through durable events.

2. High-Level Architecture

+-------------------+
| Web / Mobile App  |
+---------+---------+
          |
          v
+-------------------+
| API Gateway       |
| Auth / Rate Limit |
+---------+---------+
          |
          v
+-------------------------+
| Submission Service      |
| - Validate request      |
| - Persist submission    |
| - Emit execution job    |
+------+------------------+
       |
       | durable job event
       v
+-------------------------+        +-----------------------+
| Queue / Stream          |------->| Judge Scheduler       |
| Kafka / SQS / PubSub    |        | - Priority queues     |
+-------------------------+        | - Fairness controls   |
                                   | - Backpressure        |
                                   +-----------+-----------+
                                               |
                                               v
                                   +-----------------------+
                                   | Execution Workers     |
                                   | - Sandbox runtime     |
                                   | - Compile / run       |
                                   | - Resource limits     |
                                   +-----------+-----------+
                                               |
                                               v
+-------------------------+        +-----------------------+
| Submission DB           |<-------| Verdict Service       |
| Postgres / MySQL        |        | - Normalize results   |
+-------------------------+        | - Persist verdict     |
                                   | - Emit verdict event  |
                                   +-----------+-----------+
                                               |
                                               v
+-------------------------+        +-----------------------+
| Durable Event Log       |------->| Leaderboard Service   |
| Kafka / Event Store     |        | - Score calculation   |
+-------------------------+        | - Idempotency         |
                                   +-----------+-----------+
                                               |
                      +------------------------+------------------------+
                      |                                                 |
                      v                                                 v
            +-------------------+                           +---------------------+
            | Redis Sorted Sets |                           | Durable Score Store |
            | Real-time rank    |                           | Postgres / DynamoDB |
            +---------+---------+                           +---------------------+
                      |
                      v
            +-------------------+
            | WebSocket / SSE   |
            | Ranking updates   |
            +-------------------+

3. Core Entities

type Submission = {
  submissionId: string;
  userId: string;
  contestId?: string;
  problemId: string;
  language: string;
  sourceCodeRef: string;
  status:
    | 'PENDING'
    | 'QUEUED'
    | 'RUNNING'
    | 'ACCEPTED'
    | 'WRONG_ANSWER'
    | 'TIME_LIMIT_EXCEEDED'
    | 'RUNTIME_ERROR'
    | 'COMPILE_ERROR'
    | 'SYSTEM_RETRY'
    | 'SYSTEM_FAILED';
  createdAt: number;
  updatedAt: number;
};

type ExecutionJob = {
  jobId: string;
  submissionId: string;
  userId: string;
  contestId?: string;
  problemId: string;
  language: string;
  priority: 'CONTEST_PREMIUM' | 'CONTEST_FREE' | 'NORMAL_PREMIUM' | 'NORMAL_FREE';
  attempt: number;
  timeoutMs: number;
};

type VerdictEvent = {
  eventId: string;
  submissionId: string;
  userId: string;
  contestId?: string;
  problemId: string;
  verdict: string;
  runtimeMs: number;
  memoryBytes: number;
  judgedAt: number;
};

type LeaderboardEntry = {
  contestId: string;
  userId: string;
  solvedCount: number;
  penaltyMs: number;
  lastAcceptedAt: number;
  rank: number;
};

4. SLA Definition and Performance Trade-offs

Interview Framing

I would not commit to a blanket promise that every submission returns within 5 seconds. Code execution latency depends on language, problem complexity, test size, compile time, cold-start behavior, queue depth, and user code quality.

Instead, I would separate:

Platform latency: queueing, scheduling, sandbox startup, result persistence, notification
User code execution latency: compile time and runtime of the submitted code

The SLA should measure what the platform controls.

SLA I Would Commit To

For normal usage:

Metric	Target
P50 submission result latency	< 2 seconds
P95 submission result latency	< 5 seconds
P99 submission result latency	< 15 seconds

For contest usage:

Metric	Target
P50 submission result latency	< 3 seconds
P95 submission result latency	< 8 seconds
P99 submission result latency	< 20 seconds

For product-facing language, I would say:

Most submissions return in under 5 seconds during contests.

For engineering-facing SLO, I would define:

During contests, 95% of valid submissions should receive a verdict within 8 seconds, excluding submissions where user code legitimately consumes the full time limit.

This avoids counting correct user-level TLE behavior as infrastructure failure.

Metrics to Track

End-to-end latency should be decomposed into stages:

client_submit_to_api_ack
api_to_queue_enqueue
queue_wait_time
scheduler_dispatch_time
worker_start_time
sandbox_start_time
compile_time
execution_time
verdict_generation_time
result_persist_time
result_delivery_time

The most important derived metric is:

platform_overhead_latency = total_latency - compile_time - execution_time

I would track:

P50, P95, P99 end-to-end latency
P50, P95, P99 queue wait time
Worker utilization
Sandbox cold-start latency
Per-language latency distribution
Per-problem latency distribution
System retry rate
User-code timeout rate
Platform timeout rate
Verdict error rate
Leaderboard update latency

Contest vs Normal Usage

Normal usage can use rolling 7-day or 30-day SLO windows.

Contest usage should use:

Per-contest SLO dashboards
Real-time burn-rate alerts
Pre-contest capacity validation
Post-contest SLA review

Example alert thresholds:

P95 queue_wait_time > 3s for 5 minutes
worker_available_capacity < 20%
submission_system_error_rate > 2%
timeout_verdict_rate increases 3x above baseline
Redis leaderboard_update_latency > 500ms
queue_depth growing continuously for 10 minutes

When the SLA Cannot Be Met

I would avoid converting platform overload into incorrect user-facing verdicts.

Bad user experience:

Execution Timeout

Better user experience:

Queued
Running
System delayed
Retrying execution
Result delayed due to platform load

Submission states should distinguish user failures from platform failures:

USER_TIME_LIMIT_EXCEEDED
SYSTEM_TIMEOUT
SYSTEM_RETRY
SYSTEM_FAILED

This matters because a platform issue should not penalize a contest participant.

Adaptive Resource Allocation and Hill-Climbing

During contests, I would use adaptive capacity management.

Inputs:

queue_depth
queue_wait_time_p95
worker_cpu_utilization
worker_memory_utilization
sandbox_start_latency
system_error_rate
cost_per_minute
contest_phase

Strategy:

Start with predicted capacity based on registration count and historical submission rate.
During the contest, observe queue wait and worker utilization.
Incrementally add workers if queue wait rises above target.
Stop scaling when marginal capacity no longer improves latency enough to justify cost.
Reduce capacity slowly after the spike to avoid oscillation.

Example hill-climbing policy:

if P95 queue wait > target and worker utilization > 75%:
  increase worker pool by 10%

if P95 queue wait improves materially:
  continue scaling gradually

if P95 queue wait does not improve:
  investigate downstream bottleneck instead of blindly adding workers

if utilization < 40% for sustained period:
  scale down by 5%

The staff-level point is:

Scaling workers only helps if workers are the bottleneck. If the bottleneck is Redis, database writes, test case fetch, or network IO, adding workers can make the system worse.

Cost Trade-offs

Strict SLA guarantees are expensive because they require overprovisioning for peak traffic.

Trade-offs:

Choice	Benefit	Cost
Overprovision workers	Lower latency	Higher infra cost
Warm sandbox pools	Faster startup	Idle resource cost
Per-language pools	Better predictability	More operational complexity
Premium priority lanes	Better paid experience	Fairness concerns
Aggressive autoscaling	Cost efficient	Risk of cold-start lag
Strong isolation	Better security	Runtime overhead

I would deliberately degrade non-core paths before core contest judging.

Degrade first:

Playground submissions outside contest
Custom test runs
Historical submission browsing
Full leaderboard refresh frequency
Expensive analytics
Non-critical notifications

Protect:

Contest submission acceptance
Verdict generation
Durable result persistence
Leaderboard correctness

Tiered SLA Design

For free users:

Best-effort normal execution
Lower priority outside contests
Stricter rate limits
Potentially slower custom test execution

For premium users:

Better queue priority
More concurrent submissions
Lower expected queue latency
More stable playground experience

For contests:

I would be careful not to let premium priority distort competitive fairness.
In a ranked contest, all participants should have comparable judging priority.
Premium benefits can apply outside contests or to non-ranking practice usage.

Organizational Process

Before product markets a 5-second promise, I would require:

Load test with contest-like traffic
Per-language and per-problem latency analysis
Security overhead included in benchmarks
Cost model reviewed with infra leadership
Error budget defined
Incident response playbook ready
Product language aligned with actual SLO semantics

The staff-level posture:

SLAs are not only engineering metrics. They are contracts between product, engineering, infrastructure, support, and finance.

5. Comprehensive Failure Mode Analysis

Scenario

Saturday morning contest. 10k participants. Suddenly, 30% of submissions return execution timeout, but the code is correct.

This is an incident because the platform may be misclassifying correct solutions.

Failure Modes in the Execution Pipeline

API Layer

Possible failures:

API servers overloaded
Bad deployment increased latency
Authentication service degraded
Rate limiter misconfigured
Request body size or code upload issue

Signals:

5xx rate
request latency
submission creation failures
rate-limit rejection count
auth latency

Queue / Stream

Possible failures:

Queue depth growing
Consumer lag increasing
Partition imbalance
Duplicate jobs
Lost jobs
Poison messages
Broker throttling

Signals:

queue_depth
consumer_lag
enqueue_latency
dequeue_latency
oldest_message_age
retry_count
DLQ_count

Scheduler

Possible failures:

Incorrect prioritization
Starvation of certain languages/problems
Scheduler stuck on bad partition
Over-dispatch causing worker overload
Under-dispatch causing queue buildup

Signals:

job_dispatch_rate
per-language wait time
per-problem wait time
pending_jobs_by_priority
scheduler_error_rate

Worker Pool

Possible failures:

20% of workers down
Worker CPU saturation
Worker memory pressure
Disk exhaustion
Noisy neighbor effects
Runtime image pull failures
Container runtime bug
Sandbox startup regression

Signals:

worker_healthy_count
worker_cpu
worker_memory
worker_disk_usage
sandbox_start_latency
worker_crash_loop_count
runtime_image_pull_latency

Test Case Store

Possible failures:

Test cases unavailable
Object store latency spike
Wrong test case version
Cache miss storm
Large test case download bottleneck

Signals:

test_case_fetch_latency
test_case_fetch_error_rate
cache_hit_rate
object_store_5xx
bytes_downloaded_per_worker

Sandbox Runtime

Possible failures:

CPU quota too low
Memory limit too low
Incorrect timeout configuration
Clock measurement bug
gVisor/Kata regression
Seccomp profile too restrictive
File descriptor limit too low

Signals:

sandbox_runtime_error_rate
sandbox_timeout_rate
per-language timeout spike
per-problem timeout spike
kernel_or_runtime_error_logs

Verdict Service

Possible failures:

Incorrect verdict normalization
Timeout classification bug
Result persistence failure
Idempotency bug
Retry incorrectly marked as final

Signals:

verdict_distribution
system_timeout_vs_user_timeout_ratio
verdict_persist_error_rate
submission_state_transition_errors

Database

Possible failures:

Submission DB slow
Connection pool exhausted
Deadlocks
Replica lag
Write throttling

Signals:

db_write_latency
db_connection_pool_usage
db_error_rate
deadlock_count
replica_lag

How to Diagnose the 30% Timeout Spike

I would immediately ask:

Is the spike isolated to one language?
Is it isolated to one problem?
Is it isolated to one worker pool or availability zone?
Did a deploy happen recently?
Did timeout increase while queue wait also increased?
Are correct historical accepted solutions now timing out?
Are timeouts user-level or system-level?

The fastest diagnostic is to run known-good reference solutions through the same pipeline.

If reference solutions time out, the issue is platform-side.

Incident Response Playbook

Step 1: Declare incident

Assign incident commander
Assign communications lead
Assign technical investigation owners
Freeze non-critical deploys

Step 2: Protect users

Stop marking suspicious timeouts as final
Move affected submissions to SYSTEM_RETRY
Disable penalty application for affected submissions
Show user-facing banner:

We are investigating delayed or incorrect judging for some submissions. Affected submissions will be rejudged automatically.

Step 3: Reduce blast radius

Depending on diagnosis:

Drain bad worker pool
Roll back recent deploy
Disable problematic runtime version
Shift traffic to healthy region
Increase worker capacity
Increase timeout buffer temporarily for affected language/problem
Pause leaderboard updates from questionable verdicts

Step 4: Rejudge

Identify affected submissions
Re-run against known-good execution environment
Recompute leaderboard from durable verdict events
Publish correction summary

Handling Partial Failures

If 20% of workers are down:

Remove unhealthy workers from scheduler
Increase capacity in healthy pools
Reduce lower-priority traffic
Continue contest judging
Increase queue visibility timeout to avoid duplicate work

If queue is slow but functional:

Reduce enqueue rate from non-contest traffic
Increase consumers only if downstream can handle it
Monitor oldest message age
Avoid unbounded retries

If database is slow:

Buffer non-critical writes
Persist critical verdicts to durable event log first
Degrade historical reads
Protect write path for contest submissions

Cascading Failure Prevention

A common failure chain:

DB latency increases
→ workers block on writes
→ queue backs up
→ scheduler dispatches more work
→ worker memory grows
→ workers crash
→ retries increase
→ queue grows faster
→ total outage

Prevention:

Circuit breakers
Bounded queues
Retry budgets
Backpressure from workers to scheduler
Bulkheads by traffic class
Per-user and per-contest rate limits
Separate pools for contest and normal traffic
Idempotent execution jobs
DLQ for poison jobs
Load shedding for non-critical features

Post-Incident Analysis

The postmortem should answer:

What failed?
Why did detection not catch it earlier?
Why did the system return incorrect timeout instead of system retry?
How many users were affected?
Was leaderboard correctness impacted?
What automated guardrail would have prevented it?
What runbook gap slowed response?
What test should be added?

Staff-level ownership means converting incidents into system improvements, not just explanations.

6. Advanced Sandboxing: Application Kernels

Problem

Security researchers discover a container escape vulnerability. The CISO asks for VM-level isolation. Engineering worries about latency and cost.

This is a classic security vs performance trade-off.

Limitations of Standard Docker Containers

Docker containers are not strong security boundaries by themselves.

Risks include:

Shared host kernel
Kernel escape vulnerabilities
Misconfigured capabilities
Privileged containers
Insecure mounts
Container runtime vulnerabilities
Namespace isolation bypasses
Side-channel attacks
Noisy neighbor issues

For trusted internal workloads, containers may be enough. For arbitrary user-submitted code, the threat model is much harsher.

Isolation Options

Option	Isolation	Startup	Runtime Overhead	Cost	Use Case
Docker	Lowest	Fast	Low	Low	Trusted or low-risk code
gVisor	Medium-high	Medium	Medium	Medium	Untrusted code needing better isolation
Kata Containers	High	Slower	Medium-high	Higher	VM-backed container workloads
Firecracker VM	High	Medium	Medium	Higher	Strong multi-tenant isolation
Full VM	Highest	Slowest	Highest	Highest	Maximum isolation, lower density

Why gVisor or Application Kernels

gVisor provides a user-space kernel that intercepts application system calls and reduces direct exposure to the host kernel.

The value proposition:

It provides stronger isolation than standard containers while preserving a container-like developer and orchestration experience.

It is not equivalent to a full VM, but it reduces the blast radius of container escape vulnerabilities.

When I Would Choose gVisor

I would choose gVisor when:

Running arbitrary untrusted user code
Workloads are short-lived
Stronger isolation is needed than Docker
Full VM cost is too high
The platform can tolerate moderate runtime overhead
The security team needs defense against kernel attack surface exposure

I may use different isolation levels by risk tier:

Normal practice code: gVisor sandbox
Contest code: gVisor with stricter resource limits
Suspicious users: Firecracker/Kata or quarantine pool
Internal trusted tests: standard containers

Defense in Depth

Sandboxing is only one layer.

I would add:

Runtime restrictions

No privileged containers
Read-only root filesystem
No host mounts
Dropped Linux capabilities
Seccomp profiles
AppArmor / SELinux
Cgroup CPU and memory limits
Process count limits
File descriptor limits
Disk quota
Execution timeout

Network restrictions

Default deny egress
No arbitrary outbound internet
No metadata service access
No access to internal VPC services
Separate worker subnet
Egress proxy only for explicitly allowed operations

Data restrictions

Test cases mounted read-only
Per-submission isolated filesystem
No shared writable volume
Test case access audited
Secrets never mounted into execution environment

Host and cluster restrictions

Dedicated node pools for untrusted code
No co-location with control plane services
Frequent node recycling
Runtime patching process
Image signing and scanning

Security vs Performance Rollout Strategy

I would not flip the whole platform from Docker to gVisor overnight.

Rollout plan:

Benchmark representative languages and problems
Measure compile and runtime overhead
Run shadow execution on gVisor for a subset
Enable for low-risk traffic
Enable for contests after confidence
Keep fallback path for operational rollback
Publish risk reduction and cost impact to leadership

Decision metrics:

sandbox_start_latency_delta
runtime_overhead_by_language
worker_density_change
cost_per_submission
security_risk_reduction
incident_blast_radius_reduction

Staff-level framing:

The decision should not be “security or performance.” The decision should be risk-tiered isolation, measured rollout, and explicit leadership alignment on acceptable residual risk.

7. State Persistence and Disaster Recovery

Problem

Redis leaderboard crashes mid-contest. Users appear to lose rankings.

This should never be possible if Redis is treated correctly.

The staff-level principle:

Redis should be the real-time serving cache, not the source of truth.

What Must Persist

Must persist durably:

Submission record
Source code reference
Verdict event
Accepted timestamp
Contest scoring rule version
User score state
Leaderboard rebuild checkpoint
Rejudge events
Audit log

Can be ephemeral:

WebSocket connection state
In-memory leaderboard deltas
Redis sorted-set cache
Temporary worker files
Sandbox-local output
UI pagination cache

Leaderboard Write Path

VerdictEvent(ACCEPTED)
  → durable event log
  → leaderboard consumer
  → idempotency check
  → durable score store update
  → Redis sorted set update
  → WebSocket delta broadcast

I would persist the scoring update before or atomically with the cache update.

A practical approach:

Verdict event is written to Kafka or event store.
Leaderboard consumer updates durable score table.
Consumer updates Redis sorted set.
If Redis fails, durable score state remains correct.
Redis can be rebuilt from durable score table or event log.

Redis Data Model

Use sorted sets:

ZSET contest:{contestId}:leaderboard
score = encoded ranking score
member = userId

Because Redis sorted sets rank ascending by score, encode ranking so better users sort first.

Example:

rankScore = -solvedCount * LARGE_CONSTANT + penaltyMs

Or store score dimensions separately and use application-level ranking for complex tie-breakers.

Additional Redis keys:

HASH contest:{contestId}:user:{userId}:score
SET contest:{contestId}:solved:{problemId}
STREAM contest:{contestId}:ranking_deltas

Durable Score Store

A relational model:

contest_scores(
  contest_id,
  user_id,
  solved_count,
  penalty_ms,
  last_accepted_at,
  version,
  updated_at,
  primary key (contest_id, user_id)
)

contest_problem_solves(
  contest_id,
  problem_id,
  user_id,
  first_accepted_submission_id,
  accepted_at,
  penalty_ms,
  primary key (contest_id, problem_id, user_id)
)

The contest_problem_solves table is critical because score updates must be idempotent. A user should not get duplicate credit for multiple accepted submissions on the same problem.

Recovery Strategies

Option 1: Redis persistence

Redis RDB:

Periodic snapshots
Lower write overhead
Possible data loss between snapshots

Redis AOF:

Append-only operation log
Better durability
Higher write overhead
Larger files
Slower recovery depending on size

For contests, I would not rely only on Redis persistence. I would use Redis persistence as a secondary recovery layer, not the source of truth.

Option 2: Rebuild from durable score table

Fastest recovery:

Read contest_scores
→ bulk load Redis sorted set
→ resume leaderboard serving

This works if the durable score table is continuously updated.

Option 3: Rebuild from submission history or verdict events

Most correct recovery:

Read all accepted verdicts for contest
→ apply contest scoring rules
→ deduplicate first accepted problem solve per user
→ recompute score
→ rebuild Redis

This is slower but useful for audits, rejudging, and correcting scoring bugs.

Disaster Recovery Plan

If Redis fails mid-contest:

Mark leaderboard as temporarily stale in UI.
Continue accepting submissions.
Continue persisting verdicts and score updates durably.
Promote Redis replica or create new Redis instance.
Rebuild cache from durable score store.
Resume WebSocket updates.
Run consistency check against verdict log.

User-facing message:

Submissions are still being judged. Leaderboard updates may be delayed while we recover ranking display.

This protects trust because users know their submissions are not lost.

Testing DR

I would run:

Game day exercises before major contests
Redis failover tests in staging
Shadow rebuild jobs during production contests
Consistency checks between Redis and durable store
Replay tests from historical contests
Chaos testing on worker pools and queues

Example invariant checks:

Redis top 100 == durable store top 100
contest_scores solved_count == count(contest_problem_solves)
all accepted verdicts have corresponding score update
no duplicate accepted score per user/problem

8. Security Risk Deep Dive

Threat Model

The system runs arbitrary code from potentially malicious users.

Attack goals include:

Mine cryptocurrency
Run fork bombs
Exhaust CPU or memory
Fill disk
Exfiltrate hidden test cases
Attack internal services
Launch DDoS from worker IPs
Escape sandbox
Steal secrets
Infer other users' solutions
Abuse contest fairness

Resource Abuse Prevention

CPU mining

Controls:

CPU quota per submission
Wall-clock timeout
Per-user submission rate limit
Queue budget per user
Suspicious workload detection
No long-running background processes

Memory bombs

Controls:

Cgroup memory limit
OOM kill handling
Verdict maps to memory limit exceeded
Per-language memory policies

Fork bombs

Controls:

PID limit
Process creation limits
Seccomp restrictions
No privileged execution

Disk exhaustion

Controls:

Ephemeral per-submission filesystem
Disk quota
Output size limit
Log size limit
Cleanup after execution

Preventing Data Exfiltration

Hidden test cases are valuable. The platform must prevent users from reading or transmitting them.

Controls:

Mount test cases read-only
Inject test input through controlled runner, not exposed files when possible
No outbound network from sandbox
No access to object store credentials
No environment secrets
Per-submission isolated filesystem
Output truncation
Audit test case access
Rotate test case storage paths

Important nuance:

You cannot fully prevent users from inferring some test case properties through verdict feedback. You can reduce leakage with limited feedback, randomized tests, and careful output policies.

For contests, I may limit detailed failed test feedback:

Wrong Answer
Runtime Error
Time Limit Exceeded

instead of showing hidden test inputs.

Network-Level Protections

Workers should not become a DDoS platform.

Controls:

Default deny outbound traffic
No public internet egress from execution sandbox
Egress firewall
No internal service access
Block cloud metadata IP
Separate VPC / subnet for untrusted execution
NAT-level rate limits
IDS / eBPF monitoring
DNS disabled or controlled

If some problems require network access, I would run those in a separate high-risk pool with explicit allowlists.

Lateral Movement Prevention

Controls:

Dedicated untrusted worker cluster
No production database credentials on workers
Short-lived credentials only for control plane, not sandbox
Strong IAM boundaries
Separate node pools
No shared host paths
No Kubernetes service account token mounted into sandbox
Read-only runtime images
Frequent node rotation

Anomaly Detection

Track:

cpu_seconds_per_user
memory_peak_per_submission
fork_count
network_attempt_count
file_write_bytes
stdout_bytes
stderr_bytes
submission_rate
compile_error_rate
runtime_error_rate
sandbox_violation_count

Suspicious patterns:

Many high-CPU submissions from one account
Repeated near-timeout executions
Attempts to open network sockets
Attempts to read system paths
Very large output
High process creation count
Same source submitted across many accounts

Actions:

Throttle user
Require CAPTCHA or additional verification
Move to quarantine pool
Block submission temporarily
Alert security team

Rate Limiting and Abuse Prevention

Use layered rate limits:

per-user submissions per minute
per-IP submissions per minute
per-contest submissions per user
per-language compile budget
per-account-age limit
per-risk-score limit

For contests, rate limits must balance abuse prevention and legitimate retry behavior.

Example:

Free practice: 10 submissions / minute
Premium practice: 30 submissions / minute
Contest: problem-specific and user-specific fair-use limit
Suspicious account: dynamic lower limit

Privacy Considerations

Security monitoring should avoid collecting more source code or personal data than necessary.

Principles:

Minimize raw code access in logs
Store hashes or metadata where possible
Restrict source code access to authorized debugging paths
Redact secrets accidentally submitted by users
Define retention policies
Separate abuse signals from personal identity when possible
Ensure legal review for automated account enforcement

Cross-Functional Collaboration

This system requires alignment across:

Engineering

Execution platform
Leaderboard correctness
Observability
Incident response
Capacity planning

Security

Threat modeling
Sandbox hardening
Vulnerability response
Penetration testing
Abuse detection

Product

SLA wording
Contest fairness
User communication
Premium tier behavior

Legal / Trust and Safety

Abuse policy
Data retention
User enforcement
Responsible disclosure

Operations

On-call runbooks
Game days
Contest readiness reviews
Post-incident process

Staff-level point:

Security for untrusted execution is not a single technical feature. It is an operating model involving architecture, monitoring, incident response, policy, and continuous review.

9. Contest Readiness Review

Before a major contest, I would require a readiness checklist.

Capacity

Expected users
Expected peak submissions per second
Worker warm pool size
Queue capacity
Redis capacity
Database write capacity
WebSocket fanout capacity

Correctness

Scoring rules validated
Rejudge process tested
Leaderboard rebuild tested
Idempotency checks passing
Tie-breaker logic verified

Security

Sandbox image patched
Runtime CVEs reviewed
Network egress blocked
Worker pool isolated
Abuse thresholds configured

Operations

On-call assigned
Incident commander assigned
Rollback plan ready
Dashboards linked
Alerts tested
Support macros prepared

Product Communication

Status page prepared
User-facing degraded-state messages ready
Contest delay policy defined
Rejudge policy defined

10. Interview Summary Answer

If I had to summarize the design in an interview, I would say:

I would design code execution and leaderboard as two separate but connected systems. The execution path is optimized for secure, low-latency judging of untrusted code using isolated workers, durable queues, resource controls, and strong observability. The leaderboard path is optimized for correctness and recoverability, using Redis only as a real-time serving cache while durable verdict events and score tables remain the source of truth.

For SLA, I would not promise every result in 5 seconds. I would commit to percentile-based SLOs, such as P95 under 8 seconds during contests, excluding legitimate user-code timeouts. I would measure every stage of the pipeline, use adaptive scaling based on queue wait and worker utilization, and degrade non-critical paths before contest judging.

For failure handling, I would distinguish user timeout from system timeout, retry platform failures, prevent cascading failures with backpressure and circuit breakers, and use incident playbooks that protect users from incorrect verdicts. For sandboxing, I would move beyond plain Docker for untrusted code, likely using gVisor or VM-backed isolation based on risk tier, combined with defense-in-depth controls.

For leaderboard disaster recovery, Redis should never be the source of truth. Accepted verdicts and score updates should be durably persisted so Redis can be rebuilt mid-contest. Finally, because this platform is adversarial, I would invest heavily in abuse prevention, network isolation, anomaly detection, and cross-functional security operations.

11. Common Follow-Up Questions and Strong Answers

Why not just use Kubernetes jobs for every submission?

Kubernetes jobs are simple but can be too slow and expensive for high-frequency contest judging. I would prefer a long-running worker pool with pre-warmed sandboxes or lightweight task execution. Kubernetes can still manage the worker fleet, but the hot path should avoid creating a full Kubernetes job per submission if latency matters.

Why use Redis for leaderboard if it can fail?

Redis is excellent for low-latency ranking operations, especially sorted sets. But I would treat Redis as a derived serving layer. The source of truth should be durable verdict events and a persistent score table. If Redis fails, we rebuild it.

How do you make leaderboard updates idempotent?

The key is to model first accepted solve per user/problem:

primary key = contestId + problemId + userId

If the user submits accepted code multiple times for the same problem, only the first accepted submission should update score. Later accepted submissions should not double-count.

How do you avoid unfair judging during traffic spikes?

I would separate contest and non-contest queues. During a contest, all ranked participants should get similar priority. I would degrade playground and non-contest traffic first. I would also avoid premium priority inside ranked contests unless the contest rules explicitly allow it.

How do you recover from incorrect verdicts?

I would preserve all submissions and verdict events. If a platform issue caused incorrect verdicts, I would identify the affected time window, affected worker pool, language, or problem, mark those submissions for rejudge, recompute scores from durable events, and publish corrected leaderboard results.

How do you prevent test case theft?

I would avoid exposing hidden tests directly as files where possible. The runner should control test input injection. Sandboxes should have no outbound network, no secrets, no object-store credentials, isolated filesystems, and strict output limits. I would also avoid showing hidden test details in contest feedback.

What is the deepest trade-off in this system?

The deepest trade-off is:

latency vs isolation vs cost vs fairness

Stronger isolation increases overhead.
Lower latency requires warm capacity.
Warm capacity costs more.
Prioritization improves some user experience but can affect fairness.
More detailed feedback improves learning but increases test leakage risk.

A staff engineer should make these trade-offs explicit and align them with product and business priorities.

Problem Context​

1. Executive Summary​

2. High-Level Architecture​

3. Core Entities​

4. SLA Definition and Performance Trade-offs

Interview Framing​

SLA I Would Commit To​

Metrics to Track​

Contest vs Normal Usage​

When the SLA Cannot Be Met​

Adaptive Resource Allocation and Hill-Climbing​

Cost Trade-offs​

Tiered SLA Design​

Organizational Process​

5. Comprehensive Failure Mode Analysis

Scenario​

Failure Modes in the Execution Pipeline​

API Layer​

Queue / Stream​

Scheduler​

Worker Pool​

Test Case Store​

Sandbox Runtime​

Verdict Service​

Database​

How to Diagnose the 30% Timeout Spike​

Incident Response Playbook​

Step 1: Declare incident​

Step 2: Protect users​

Step 3: Reduce blast radius​

Step 4: Rejudge​

Handling Partial Failures​

Cascading Failure Prevention​

Post-Incident Analysis​

6. Advanced Sandboxing: Application Kernels

Problem​

Limitations of Standard Docker Containers​

Isolation Options​

Why gVisor or Application Kernels​

When I Would Choose gVisor​

Defense in Depth​

Runtime restrictions​

Network restrictions​

Data restrictions​

Host and cluster restrictions​

Security vs Performance Rollout Strategy​

7. State Persistence and Disaster Recovery

Problem​

What Must Persist​

Leaderboard Write Path​

Redis Data Model​

Durable Score Store​

Recovery Strategies​

Option 1: Redis persistence​

Option 2: Rebuild from durable score table​

Option 3: Rebuild from submission history or verdict events​

Disaster Recovery Plan​

Testing DR​

8. Security Risk Deep Dive

Threat Model​

Resource Abuse Prevention​

CPU mining​

Memory bombs​

Fork bombs​

Disk exhaustion​

Preventing Data Exfiltration​

Network-Level Protections​

Lateral Movement Prevention​

Anomaly Detection​

Rate Limiting and Abuse Prevention​

Privacy Considerations​

Cross-Functional Collaboration​

Engineering​

Security​

Product​

Legal / Trust and Safety​

Operations​

9. Contest Readiness Review

Capacity​

Correctness​

Problem Context

1. Executive Summary

2. High-Level Architecture

3. Core Entities

Interview Framing

SLA I Would Commit To

Metrics to Track

Contest vs Normal Usage

When the SLA Cannot Be Met

Adaptive Resource Allocation and Hill-Climbing

Cost Trade-offs

Tiered SLA Design

Organizational Process

Scenario

Failure Modes in the Execution Pipeline

API Layer

Queue / Stream

Scheduler

Worker Pool

Test Case Store

Sandbox Runtime

Verdict Service

Database

How to Diagnose the 30% Timeout Spike

Incident Response Playbook

Step 1: Declare incident

Step 2: Protect users

Step 3: Reduce blast radius

Step 4: Rejudge

Handling Partial Failures

Cascading Failure Prevention

Post-Incident Analysis

Problem

Limitations of Standard Docker Containers

Isolation Options

Why gVisor or Application Kernels

When I Would Choose gVisor

Defense in Depth

Runtime restrictions

Network restrictions

Data restrictions

Host and cluster restrictions

Security vs Performance Rollout Strategy

Problem

What Must Persist

Leaderboard Write Path

Redis Data Model

Durable Score Store

Recovery Strategies

Option 1: Redis persistence

Option 2: Rebuild from durable score table

Option 3: Rebuild from submission history or verdict events

Disaster Recovery Plan

Testing DR

Threat Model

Resource Abuse Prevention

CPU mining

Memory bombs

Fork bombs

Disk exhaustion

Preventing Data Exfiltration

Network-Level Protections

Lateral Movement Prevention

Anomaly Detection

Rate Limiting and Abuse Prevention

Privacy Considerations

Cross-Functional Collaboration

Engineering

Security

Product

Legal / Trust and Safety

Operations

Capacity

Correctness

Security

Operations

Product Communication

Why not just use Kubernetes jobs for every submission?

Why use Redis for leaderboard if it can fail?

How do you make leaderboard updates idempotent?
