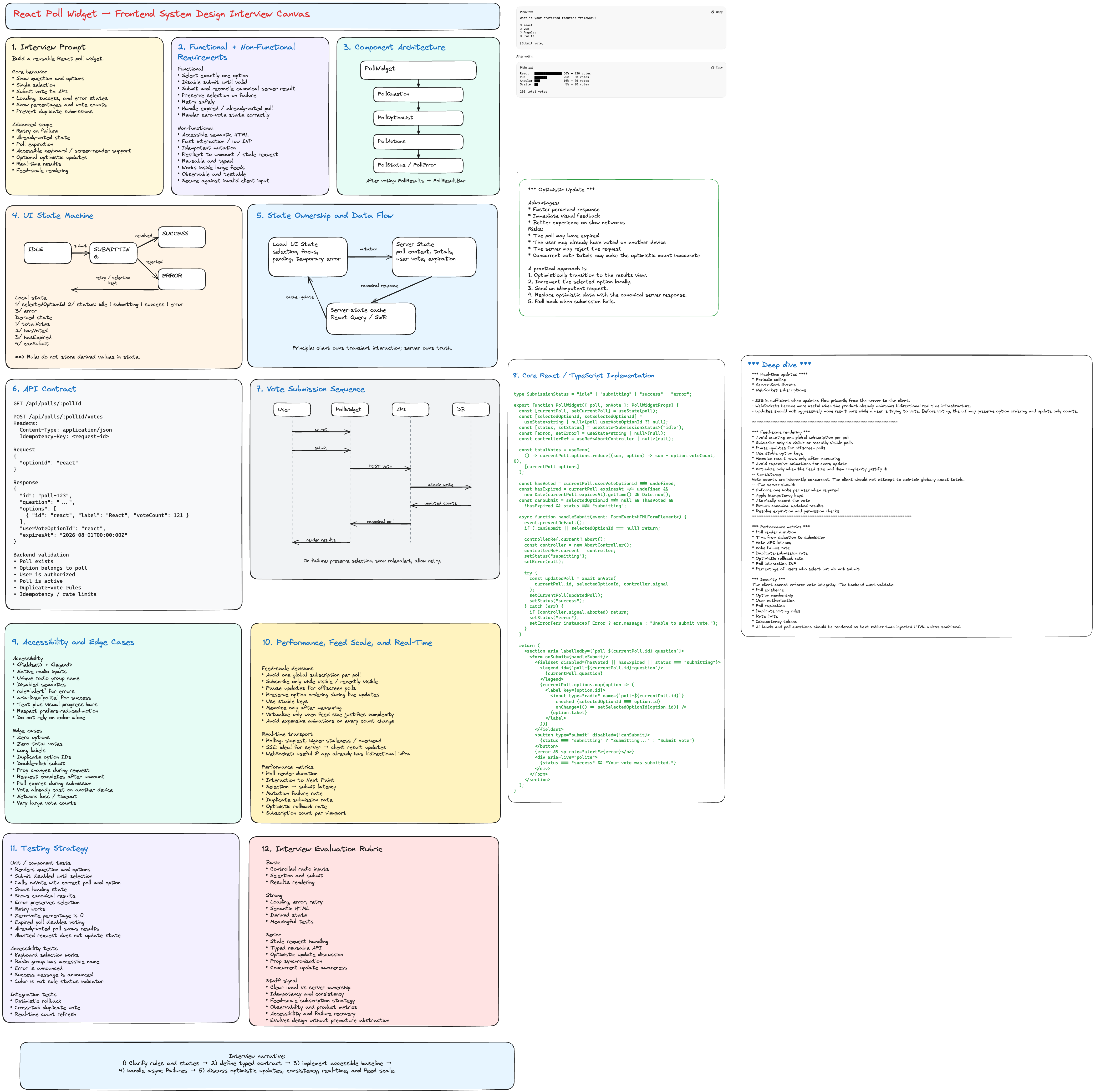

Poll widget architecture and interaction flow

Frontend System Design Interview: Poll Widget

Use this framework to present a staff-level design for a reusable poll widget that can be embedded across pages and products.

1. Clarify Scope and Product Constraints​

  • Widget types:
    • Single-choice poll
    • Multi-choice poll (optional)
    • Open-ended response (optional, if explicitly in scope)
  • Context:
    • Embedded in article/feed/detail pages
    • Can appear multiple times on one page
  • Behavioral requirements:
    • One vote per user/session/device (depends on product policy)
    • Show live or delayed results
    • Support anonymous voting if needed
  • Scale assumptions:
    • High read QPS, bursty write QPS during live events
    • Global audience with uneven network quality

2. Define Success Metrics Up Front​

  • Product metrics:
    • Vote completion rate
    • Time-to-first-vote
    • Poll engagement per impression
    • Poll abandonment rate
  • Technical metrics:
    • P95 widget load time
    • P95 vote submission latency
    • Realtime result freshness lag
    • Vote failure and retry rate

3. Core User Flows​

  • Load widget with question/options/current state.
  • User selects option(s) and submits vote.
  • UI confirms vote and transitions to result view.
  • Widget receives result updates (polling/realtime).
  • User returns later and sees prior vote state.

4. Frontend Architecture (What to Draw)​

  • Reusable widget package:
    • UI layer (presentation and accessibility)
    • State machine (loading, voting, voted, error, closed)
    • Data adapter (REST/GraphQL contract)
    • Realtime adapter (SSE/WebSocket/fallback polling)
  • Host integration contract:
    • pollId
    • user identity token or anonymous key
    • feature flags (realtime on/off, result visibility mode)
  • Separation of concerns:
    • Widget owns interaction and local state
    • Host page owns placement and analytics context

5. Suggested Data Model at the UI Layer​

  • Poll:
    • id, title, question, closeAt, visibility rules
  • Option:
    • id, label, voteCount, votePct
  • UserVote:
    • selectedOptionIds, submittedAt, source
  • WidgetState:
    • status (idle|loading|ready|submitting|voted|error|closed)
    • optimisticVote
    • lastSyncedAt

6. Rendering and Performance Strategy​

  • Small payload first render:
    • question, options, user vote flag
    • defer heavy metadata
  • Multiple widgets per page:
    • avoid duplicate fetching via shared cache
    • lazy-mount offscreen widgets
  • Reduce jank:
    • reserve space to prevent layout shift
    • memoize option rows and chart segments

7. Vote Submission Path (Critical)​

  • Validation:
    • enforce single vs multi-select constraints
    • prevent duplicate submissions in-flight
  • Submission protocol:
    • idempotency key per vote attempt
    • retry with capped exponential backoff on transient failures
  • Optimistic UI:
    • immediately reflect selected option and temporary totals
    • reconcile with authoritative server response
    • rollback with clear message if rejected

8. Realtime Result Updates​

  • Strategy by product tier:
    • Live events: SSE/WebSocket + heartbeat
    • Standard pages: periodic polling
  • Update model:
    • apply incremental deltas when possible
    • full snapshot refresh on drift detection
  • Failure behavior:
    • fallback from realtime to polling
    • expose stale indicator if updates lag

9. Correctness and Consistency Decisions​

  • Strong consistency needed for:
    • final vote acceptance/rejection
    • closed poll state
  • Eventual consistency acceptable for:
    • aggregate percentages/count animation
    • non-critical rank ordering for close results
  • Conflict handling:
    • duplicate vote detected
    • poll closed mid-submit
    • option removed or moderated

10. Accessibility and Inclusivity​

  • Keyboard-only flow for option selection and submit.
  • Proper semantics:
    • fieldset and legend for question/options group
    • clear labels and focus states
  • Screen reader announcements:
    • vote success/failure
    • result updates
  • Visual clarity:
    • high contrast bars/text
    • do not rely on color alone for winning option

11. Security, Abuse, and Privacy​

  • Validate on server; never trust client vote limits.
  • Protect against scripted abuse:
    • rate limiting
    • bot heuristics
    • signed user/session assertions
  • Privacy choices:
    • anonymous mode masks identity in result data
    • avoid exposing raw participant identifiers in client payloads

12. Observability and Experimentation​

  • Product events:
    • poll_impression
    • option_selected
    • vote_submit_clicked
    • vote_submit_success
    • vote_submit_failed
    • result_viewed
  • Technical telemetry:
    • API latency
    • realtime disconnect counts
    • retries per vote
    • stale duration
  • Feature flags:
    • optimistic UI on/off
    • realtime transport strategy
    • result visibility modes

13. Key Tradeoffs to Discuss as Staff Engineer​

  • Realtime freshness vs battery/network/resource cost.
  • Immediate optimistic results vs temporary mismatch risk.
  • Rich visualization vs low-end device performance.
  • Strict anti-abuse checks vs friction and drop-off.

14. 45-60 Minute Interview Delivery Plan​

  • 0-5 min: clarify scope, users, constraints, success metrics.
  • 5-15 min: architecture and contracts (widget + host + backend).
  • 15-30 min: vote submission and realtime result pipeline.
  • 30-40 min: reliability, retries, consistency, failure handling.
  • 40-50 min: accessibility, abuse prevention, observability.
  • 50-60 min: scaling decisions and roadmap extensions.

15. Staff-Level Signals You Should Explicitly Show​

  • You define exact consistency boundaries, not generic statements.
  • You design idempotent writes and failure recovery paths.
  • You plan for multi-embed pages and cross-surface reuse.
  • You tie frontend decisions to measurable product impact.
  • You outline phased rollout with feature flags and guardrails.

16. Common Follow-Up Questions​

  • How would you prevent double voting across devices?
  • How do you handle spikes during a live stream poll?
  • How do you degrade gracefully if realtime channel fails?
  • What if user identity is unknown at initial render?
  • How would you support editable polls and option moderation?
