Job scheduler

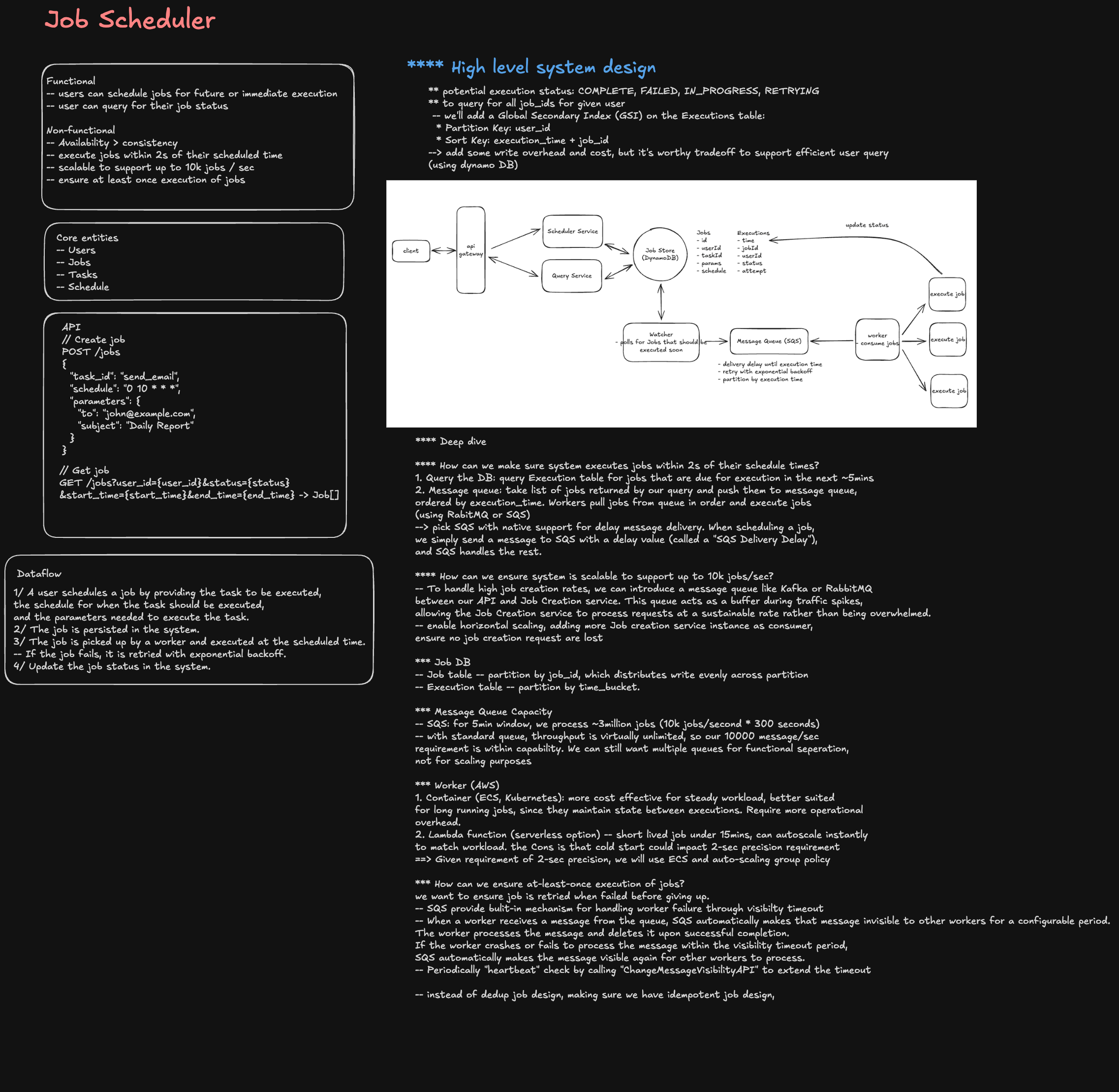

Editable diagram: Open in Excalidraw

Staff-engineer framing

The key question is not only how to enqueue and execute jobs. A production scheduler must define what happens when a job is running, a worker dies, an operator pauses it, or a downstream dependency fails.

Clarify these requirements before choosing implementation details:

• At-least-once or exactly-once effects: Most schedulers provide at-least-once execution. Job handlers must therefore be idempotent or use deduplication keys.
• Execution model: One-shot jobs, recurring jobs, DAGs, long-running workflows, or all of them.
• Control plane vs. data plane: Scheduling and operator commands should remain available even when workers are overloaded.
• Recovery objective: How quickly should a failed worker's jobs be reassigned, and how much progress can be lost?
• Safety: Which jobs may be stopped, retried, or resumed, and which require compensation or manual approval?

Job state machine

Persist job state durably rather than relying on worker memory:

           enqueue
             |
           PENDING
         /      |      \
     claim       pause     cancel
      |           |          |
    RUNNING     PAUSED    CANCELLED
     / |  \
 success  retryable error  stop
  |          |              |
SUCCEEDED   RETRY_WAIT    STOPPING
           |              |
          retry         STOPPED

Useful states include PENDING, RUNNING, PAUSED, RETRY_WAIT, STOPPING, STOPPED, SUCCEEDED, FAILED, and CANCELLED. Every transition should be conditional on the current version so two workers cannot both claim or control the same job.

In-flight jobs

An in-flight job is a job that has been claimed by a worker but has not reached a terminal state. Treat this as a lease, not ownership forever.

Claiming and heartbeats

When a worker claims a job, the scheduler atomically writes:

• status = RUNNING
• worker_id
• lease_id
• lease_expires_at
• attempt
• started_at

The worker renews the lease with heartbeats. If the lease expires, the recovery service moves the job back to PENDING or RETRY_WAIT and another worker may claim it.

Use a fencing token or monotonically increasing lease_id. A stale worker must not be able to commit results after its lease has expired and the job has been reassigned.

Progress and checkpoints

For long-running jobs, persist progress at safe boundaries:

job_id       = export-123
checkpoint   = page-4200
processed    = 4,200,000 records
checkpoint_version = 18
updated_at   = ...

Checkpoint only after the associated side effect is durable. Otherwise a resumed job can skip work or duplicate work. The handler should make each checkpointed unit idempotent with a stable operation key such as job_id + item_id.

What happens when a worker dies?

1. Heartbeats stop.
2. The lease expires after a bounded timeout.
3. Recovery marks the attempt as interrupted.
4. The job is retried from its latest valid checkpoint, or restarted from the beginning.
5. The retry policy decides whether to use another queue, worker pool, or dead-letter state.

Do not assume a process kill rolls back external effects. For payments, emails, data writes, or API calls, use idempotency keys, an outbox, transactional status records, or compensating actions.

Pause, stop, and cancel semantics

These commands are different and should be exposed separately in the API and UI.

Pause

Pause prevents new work from starting but allows the current safe unit to finish. A paused job remains resumable and retains its checkpoint.

Recommended behavior:

1. Set pause_requested = true in the control plane.
2. Workers observe the flag between units or at heartbeat time.
3. The worker stops claiming additional work and transitions the job to PAUSED.
4. The scheduler stops dispatching the job until an explicit resume.

Pause is cooperative. It cannot safely interrupt arbitrary code at any instruction boundary.

Stop

Stop requests graceful termination. The worker finishes the current transactional unit, writes a checkpoint, releases resources, and transitions to STOPPED.

For jobs that do not respond within a configured grace period:

• mark the request as STOPPING;
• emit an escalation event;
• terminate the worker or container as a last resort;
• retry only if the job contract says the side effects are safe to repeat.

Cancel

Cancel prevents a pending job from running. For a running job, cancellation should normally behave like a stop request followed by a terminal CANCELLED state. If partial side effects cannot be undone, show that explicitly and run a compensating workflow instead of claiming rollback.

Resume behavior

Resume should be a state transition, not simply a new enqueue operation.

PAUSED  --resume--> PENDING
STOPPED --resume--> PENDING
RETRY_WAIT --retry--> PENDING

On resume:

• validate that the checkpoint schema is still compatible with the current job version;
• validate that required inputs and dependencies still exist;
• create a new attempt while preserving the prior attempt history;
• retain the same logical job_id but issue a new attempt_id and lease;
• start from the latest committed checkpoint;
• prevent two resumes with an atomic compare-and-set transition.

If the job is not safely resumable, make the UI offer restart from beginning rather than pretending that resume is supported. For DAGs, resume only failed nodes and their descendants when dependencies are unchanged; otherwise recompute the affected subgraph.

Error handling and alerting

Classify errors before deciding whether to retry:

Error type	Action
Transient dependency timeout	Retry with exponential backoff and jitter.
Rate limit or overload	Honor Retry-After, reduce concurrency, and alert if sustained.
Invalid input or schema	Fail fast; do not retry indefinitely.
Non-idempotent side-effect failure	Place in a review queue and require reconciliation.
Worker crash or lease expiry	Recover from checkpoint and increment attempt.
Repeated failure	Move to dead-letter/manual-review state.
Policy or authorization failure	Stop and alert the owner/security channel.

Every attempt should emit structured events containing job_id, attempt_id, workflow_id, task_name, worker_id, error class, retry count, checkpoint, and trace ID. Never use only free-form log messages for operational decisions.

Alert on symptoms and causes:

• Job failure rate or repeated failures above threshold.
• Dead-letter queue growth.
• Lease-expiry and worker-crash rate.
• Queue age and schedule lateness.
• Checkpoint/freshness lag for long-running jobs.
• Retry storms or exhausted retry budgets.
• Error-budget burn for critical workflows.
• A job stuck in RUNNING, STOPPING, or PAUSED beyond its SLA.

Route alerts by ownership: page the on-call engineer for customer-impacting failures, notify the job owner for workflow errors, and create a ticket for non-urgent trends. Include a runbook link, recent attempt IDs, logs/traces, the last checkpoint, and a safe action such as retry, pause, or rollback.

Observability and auditability

Keep an append-only job-event history separate from the current job projection. This supports debugging and answers questions such as who paused a job, which worker executed a side effect, and why a retry occurred.

Track:

• Queue depth, queue age, dispatch latency, and schedule skew.
• Worker utilization, concurrency, lease renewals, and heartbeat latency.
• Duration and success rate by job type and attempt number.
• Pause, stop, cancel, resume, and forced-termination counts.
• Checkpoint frequency, recovery time, duplicate-effect rate, and dead-letter volume.

Use correlation IDs across scheduler, worker, database, queue, and downstream services. Control-plane actions should be authenticated, authorized, audited, and protected against accidental bulk operations.

Staff-level trade-offs to discuss

• Exactly-once vs. at-least-once: Prefer at-least-once delivery plus idempotent handlers because distributed exactly-once execution is costly and often misleading across external systems.
• Hard kill vs. graceful stop: Graceful stop protects consistency but delays recovery; hard kill improves recovery time but requires robust checkpointing and reconciliation.
• Frequent checkpoints vs. throughput: More checkpoints reduce replay work but add storage and coordination overhead. Checkpoint at business-safe boundaries.
• Central scheduler vs. partitioned schedulers: A central control plane simplifies operations; partitioning improves scale and fault isolation but complicates global ordering.
• Automatic retry vs. human review: Retry transient failures automatically, but stop retry storms and route ambiguous side-effect failures to reconciliation.

The strongest design makes job execution reversible where possible, observable at every state transition, and explicit about what “resume” means for each job type.
