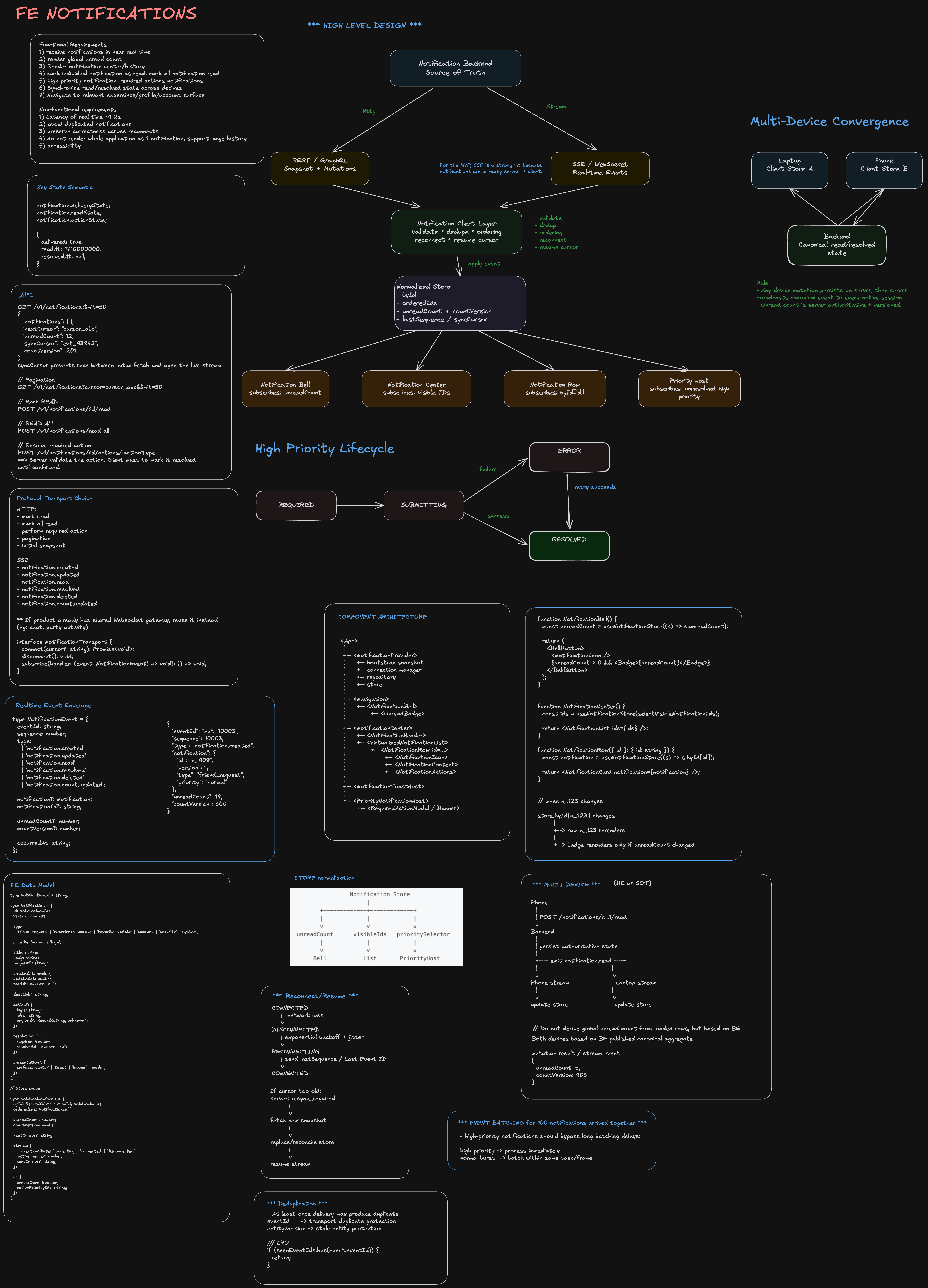

Editable diagram: Open in Excalidraw
Notifications — Frontend System Design
Staff-level focus: requirements → architecture → data model → component binding/rendering → multi-device consistency → failure/reconnect → tradeoffs.
1. Problem Statement
Design the client side of a notification system that:
- surfaces account, profile, friends, favorite experiences, and system activity
- updates users in near real time
- supports multiple logged-in devices
- provides a global unread indicator
- allows users to open prior notifications
- supports high-priority notifications that require an action before dismissal
For the MVP, optimize for:
- correctness across devices
- low event-to-render latency
- predictable rendering behavior
- clear backend/frontend ownership
2. Requirements
Functional
- Receive notifications in near real time while the app is open.
- Render global unread count.
- Render notification center/history.
- Mark individual notifications read.
- Mark all notifications read.
- Support high-priority, required-action notifications.
- Synchronize read/resolved state across devices.
- Navigate to the relevant experience/profile/account surface.
Non-functional
- Target event-to-visible latency: ~1–2 seconds under normal conditions.
- Avoid duplicate notifications.
- Preserve correctness across reconnects.
- Do not rerender the whole application for one notification.
- Support potentially large notification history.
- Remain accessible.
3. Key State Semantics
Do not collapse all state into a single read boolean.
notification.deliveryState;
notification.readState;
notification.actionState;
A high-priority notification can be:
{
delivered: true,
readAt: 1710000000,
resolvedAt: null,
}
Meaning:
Delivered != Read != Resolved
This distinction is critical for required-action notifications.
4. High-Level Architecture
Notification Backend
/ \
REST / GraphQL SSE / WebSocket
snapshot + mutation real-time
| |
+-----------+--------------+
|
v
Notification Client Layer
- transport abstraction
- event validation
- deduplication
- ordering/version checks
- reconnect/resume
|
v
Normalized Client Store
- byId
- orderedIds
- unreadCount
- cursor/sequence
- UI state
/ | \
v v v
Bell List Priority Host
Badge Rows Modal/Banner
Staff-level principle
Backend is authoritative for notification lifecycle and unread aggregate. Frontend owns presentation, working-set cache, render scheduling, optimistic UX, and reconnection behavior.
5. Transport Choice
For the MVP, SSE is a strong fit because notifications are primarily server → client.
Use HTTP for:
mark read
mark all read
perform required action
pagination
initial snapshot
Use SSE for:
notification.created
notification.updated
notification.read
notification.resolved
notification.deleted
notification.count.updated
If the product already has a shared WebSocket gateway for chat/presence/party activity, reuse it instead.
Hide the transport:
interface NotificationTransport {
connect(cursor?: string): Promise<void>;
disconnect(): void;
subscribe(handler: (event: NotificationEvent) => void): () => void;
}
6. API Contracts
Initial snapshot
GET /v1/notifications?limit=50
{
"notifications": [],
"nextCursor": "cursor_abc",
"unreadCount": 12,
"syncCursor": "evt_93842",
"countVersion": 201
}
syncCursor prevents the race between initial fetch and opening the live stream.
Fetch older notifications
GET /v1/notifications?cursor=cursor_abc&limit=50
Mark read
POST /v1/notifications/:id/read
Mark all read
POST /v1/notifications/read-all
Resolve required action
POST /v1/notifications/:id/actions/:actionType
The server must validate the action. The client must not mark it resolved until confirmed.
7. Real-Time Event Envelope
type NotificationEvent = {
eventId: string;
sequence: number;
type:
| 'notification.created'
| 'notification.updated'
| 'notification.read'
| 'notification.resolved'
| 'notification.deleted'
| 'notification.count.updated';
notification?: Notification;
notificationId?: string;
unreadCount?: number;
countVersion?: number;
occurredAt: string;
};
Example:
{
"eventId": "evt_10003",
"sequence": 10003,
"type": "notification.created",
"notification": {
"id": "n_908",
"version": 1,
"type": "friend_request",
"priority": "normal"
},
"unreadCount": 14,
"countVersion": 300
}
8. Frontend Data Model
Normalize notification entities.
type NotificationId = string;
type Notification = {
id: NotificationId;
version: number;
type:
'friend_request' | 'experience_update' | 'favorite_update' | 'account' | 'security' | 'system';
priority: 'normal' | 'high';
title: string;
body: string;
imageUrl?: string;
createdAt: number;
updatedAt: number;
readAt: number | null;
deepLink?: string;
action?: {
type: string;
label: string;
payload?: Record<string, unknown>;
};
resolution: {
required: boolean;
resolvedAt: number | null;
};
presentation?: {
surface: 'center' | 'toast' | 'banner' | 'modal';
};
};
Store shape:
type NotificationState = {
byId: Record<NotificationId, Notification>;
orderedIds: NotificationId[];
unreadCount: number;
countVersion: number;
nextCursor?: string;
stream: {
connectionState: 'connecting' | 'connected' | 'disconnected';
lastSequence?: number;
syncCursor?: string;
};
ui: {
centerOpen: boolean;
activePriorityId?: string;
};
};
9. Why Normalize the Store
Avoid duplicating arrays into multiple component trees.
Bad:
Bell owns notifications[]
List owns notifications[]
Toast owns notifications[]
Modal owns notifications[]
Good:
Notification Store
|
+-------------+-------------+
| | |
v v v
unreadCount visibleIds prioritySelector
| | |
v v v
Bell List PriorityHost
One entity update happens once.
Every component subscribes through a selector.
10. Component Architecture
<App>
|
+-- <NotificationProvider>
| +-- bootstrap snapshot
| +-- connection manager
| +-- repository
| +-- store
|
+-- <Navigation>
| +-- <NotificationBell>
| +-- <UnreadBadge>
|
+-- <NotificationCenter>
| +-- <NotificationHeader>
| +-- <VirtualizedNotificationList>
| +-- <NotificationRow id=...>
| +-- <NotificationIcon>
| +-- <NotificationContent>
| +-- <NotificationActions>
|
+-- <NotificationToastHost>
|
+-- <PriorityNotificationHost>
+-- <RequiredActionModal / Banner>
11. Data Binding and Render Boundaries
Avoid prop drilling:
<App notifications={notifications}>
<Header notifications={notifications}>
<Bell notifications={notifications} />
</Header>
</App>
Instead, subscribe directly to narrow slices.
function NotificationBell() {
const unreadCount = useNotificationStore((s) => s.unreadCount);
return (
<BellButton>
<NotificationIcon />
{unreadCount > 0 && <Badge>{unreadCount}</Badge>}
</BellButton>
);
}
List subscribes to IDs:
function NotificationCenter() {
const ids = useNotificationStore(selectVisibleNotificationIds);
return <NotificationList ids={ids} />;
}
Each row subscribes to only one entity:
function NotificationRow({ id }: { id: string }) {
const notification = useNotificationStore((s) => s.byId[id]);
return <NotificationCard notification={notification} />;
}
Why this matters
When notification n_123 changes:
store.byId[n_123] changes
|
+--> row n_123 rerenders
|
+--> badge rerenders only if unreadCount changed
The entire notification list and app shell should not rerender.
12. Render Flow for a New Notification
Backend emits notification.created
|
v
SSE / WebSocket client
|
v
Connection Manager
- validate
- dedupe eventId
- check sequence
|
v
applyNotificationEvent()
|
+--------+---------+
| |
v v
insert entity update unreadCount
| |
v v
row/list selector Bell selector
| |
v v
render row render badge
|
+--> ToastHost may render toast
Use a single deterministic reducer/transaction path for all live events.
function applyNotificationEvent(state: NotificationState, event: NotificationEvent) {
if (event.sequence <= (state.stream.lastSequence ?? -1)) {
return;
}
switch (event.type) {
case 'notification.created':
upsertNotification(state, event.notification!);
break;
case 'notification.updated':
upsertNotification(state, event.notification!);
break;
case 'notification.read':
applyReadEvent(state, event);
break;
case 'notification.resolved':
applyResolvedEvent(state, event);
break;
}
state.stream.lastSequence = event.sequence;
}
13. Entity Versioning
Do not trust delivery order alone.
function upsertNotification(state: NotificationState, incoming: Notification) {
const current = state.byId[incoming.id];
if (current && incoming.version <= current.version) {
return;
}
state.byId[incoming.id] = incoming;
}
Protects against:
version 7 arrives
version 6 arrives later
The older payload must not overwrite the newer one.
14. Multi-Device Consistency
This is a core requirement.
Notification Backend
/ \
/ \
SSE A SSE B
| |
v v
Laptop Phone
Both devices subscribe to a user/account-level notification stream.
Example: phone marks a notification read
Phone
|
| POST /notifications/n_1/read
v
Backend
|
| persist authoritative state
|
+---- emit notification.read ----+
| |
v v
Phone stream Laptop stream
| |
v v
update store update store
The initiating device also receives the canonical server event.
This guarantees eventual convergence.
15. Unread Count Across Devices
Do not derive global unread count from loaded rows:
notifications.filter((n) => !n.readAt).length;
The client may only hold 50 of thousands of notifications.
Use a server-authoritative aggregate:
{
"unreadCount": 8,
"countVersion": 421
}
Client application logic:
if ((event.countVersion ?? 0) > state.countVersion) {
state.unreadCount = event.unreadCount!;
state.countVersion = event.countVersion!;
}
This also handles races between devices.
16. Multi-Device Race Example
Initial state:
Laptop unreadCount = 5
Phone unreadCount = 5
At the same moment:
Phone marks one notification read
Laptop receives a new notification
If each device only increments/decrements locally, they can diverge.
Instead, backend publishes canonical aggregates:
mutation result / stream event
{
unreadCount: 5,
countVersion: 903
}
Both devices eventually accept the latest count version.
17. Optimistic Updates
For low-risk UI actions like markRead:
user clicks notification
|
v
optimistically set readAt
|
+--> badge decreases locally
|
v
POST /read
|
+--> success: reconcile with server version/count
|
+--> failure: rollback or refetch
For high-priority resolution:
DO NOT resolve optimistically
The backend must confirm the required action completed successfully.
18. Required-Action Notification State Machine
REQUIRED
|
click
v
SUBMITTING
/ \
v v
SUCCESS ERROR
| |
v | retry
RESOLVED <--+
Suggested model:
type ActionState = 'required' | 'submitting' | 'error' | 'resolved';
Never couple dismissal directly to readAt.
19. Snapshot + Stream Synchronization
Avoid this race:
GET snapshot
|
[event created here]
|
connect stream
That notification may be missed.
Instead:
GET /notifications
-> notifications
-> unreadCount
-> syncCursor = evt_1000
connect stream(resumeAfter=evt_1000)
Then the server sends events from:
evt_1001 onward
20. Reconnect / Resume
CONNECTED
|
network loss
v
DISCONNECTED
|
exponential backoff + jitter
v
RECONNECTING
|
send lastSequence / Last-Event-ID
v
CONNECTED
If the cursor is too old:
server: resync_required
|
v
fetch new snapshot
|
v
replace/reconcile store
|
v
resume stream
21. Deduplication
At-least-once delivery may produce duplicates.
Use:
eventId -> transport duplicate protection
entity.version -> stale entity protection
Example:
if (seenEventIds.has(event.eventId)) {
return;
}
Keep seenEventIds bounded with an LRU.
22. Rendering Large Histories
For MVP:
initial load: 30–50 rows
cursor pagination
load more near viewport end
For larger histories:
VirtualizedNotificationList
Do not keep rendering thousands of DOM nodes.
23. Event Batching
If 100 normal notifications arrive together:
100 network events
|
v
buffer events
|
v
single store transaction
|
v
React render batch
But high-priority notifications should bypass long batching delays.
high priority -> process immediately
normal burst -> batch within same task/frame
24. Backend vs Frontend Ownership
Backend owns
- persistence
- notification lifecycle truth
- unread aggregate
- event ordering metadata
- event replay
- multi-device fan-out
- authorization
- required-action validation
- retention
Frontend owns
- local normalized working set
- transport lifecycle
- optimistic interaction
- UI composition
- rendering performance
- virtualization
- accessibility
- retry/reconnect UX
25. Observability
Measure the thing the requirement actually promises.
backend emitted timestamp
|
v
client received timestamp
|
v
component committed timestamp
Metrics:
notification_event_to_render_ms
stream_connect_success_rate
stream_reconnect_rate
sequence_gap_rate
duplicate_event_rate
notification_action_success_rate
notification_action_error_rate
snapshot_fetch_latency
At Staff level, explicitly define an SLO for event-to-render latency.
26. Interview Summary
I would model the notification backend as the source of truth and the frontend as a normalized, reactive working set. The client fetches an initial snapshot containing a synchronization cursor, opens an SSE/WebSocket stream from that cursor, and applies all events through one deterministic reducer. UI components subscribe to narrow selectors so the bell, notification rows, toast host, and priority surface rerender independently. For multi-device support, every device subscribes to the same account-level stream; mutations from any device are persisted server-side and broadcast back to all sessions. Unread count is server-authoritative and versioned because a client may only hold a subset of the notification history. Required-action notifications separate read state from resolved state and only resolve after server confirmation.
27. Staff-Level Talking Points Checklist
- Clarify read vs resolved semantics.
- Discuss snapshot + stream cursor race.
- Use normalized state.
- Explain component subscription boundaries.
- Make unread count server-authoritative.
- Explain cross-device mutation fan-out.
- Add event IDs and entity versions.
- Discuss reconnect/resume and resync.
- Prevent render fan-out.
- Discuss high-priority state machine.
- Measure event-to-render latency.
- Define backend/frontend ownership.
