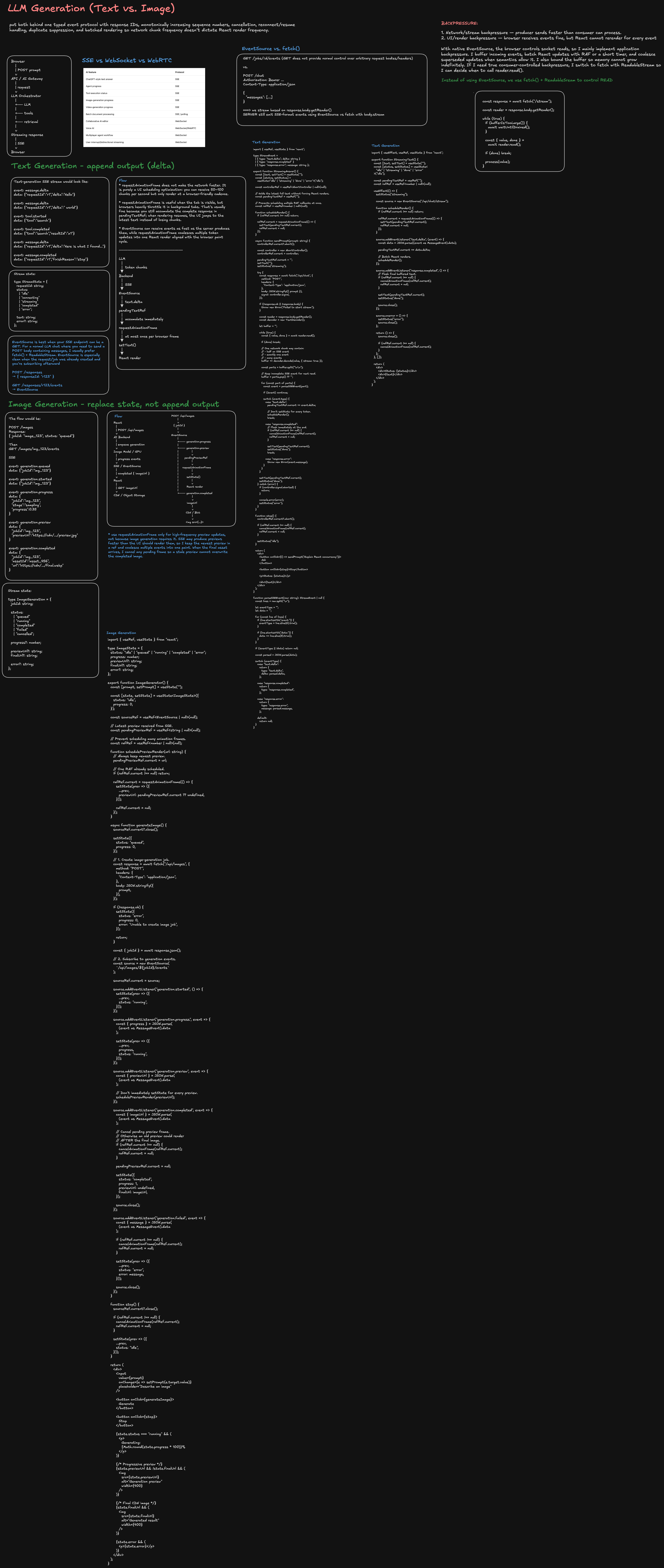

LLM Streaming Frontend: Text vs Image Generation

This guide focuses on how I would discuss and implement LLM text streaming versus image generation in a staff-level frontend interview.

The core distinction is:

TEXT
User request
   |
   v
LLM produces incremental text deltas
   |
   v
Stream deltas to browser
   |
   v
Append text
   |
   v
Batch React rendering


User request
   |
   v
Create durable generation job
   |
   v
GPU/model generates image
   |
   +--> progress / preview events
   |
   v
Final binary -> Object Storage / CDN
   |
   v
SSE sends final image URL
   |
   v
React renders <img src={url}>

1. Text LLM vs Image Generation

Concern	Text LLM	Image Generation
Output	Incremental tokens/deltas	Job + previews + final asset
State update	Append	Replace latest preview/progress
Common transport	fetch() streaming / SSE	POST job + EventSource/SSE
Binary payload	Usually none	Stored in blob storage/CDN
requestAnimationFrame	Very useful	Useful for frequent previews
Resume identity	responseId + sequence	jobId + sequence
Cancellation	Abort stream + server cancel	Close stream + cancel GPU/job
Retry	Resume/reconnect response	Reconnect to durable job
Major race	Duplicate/misordered text events	Stale preview after final image

2. Why SSE for LLM Streaming?

A traditional LLM interaction is mostly asymmetric:

Browser -------------------> Server
           prompt

Browser <------------------- Server
      token token token token

The client sends one command, then receives many server events.

That makes SSE a strong default.

Typical event types:

response.created
text.delta
tool.started
tool.completed
citation
image.progress
image.preview
image.completed
response.completed
response.failed

For continuously bidirectional traffic, prefer WebSocket/WebRTC.

Voice agent
Browser ---- audio chunks ----> Server
Browser <--- transcript -------- Server
Browser <--- synthesized audio - Server
Browser ---- interrupt ---------> Server

3. fetch() Streaming vs EventSource

fetch() streaming

Useful when the initial LLM request itself must be:

POST /api/chat
Content-Type: application/json

{
  "messages": [...]
}

Advantages:

• POST request body.
• Normal auth headers.
• AbortController.
• Direct access to ReadableStream.
• Good for request -> streaming response.

Architecture:

React
  |
  | POST /api/chat
  v
AI Gateway
  |
  | stream
  v
ReadableStream
  |
  v
SSE parser
  |
  v
React

EventSource

Useful when the resource already exists:

POST /api/responses
      |
      v
{ responseId: "resp_123" }

GET /api/responses/resp_123/events
      |
      v
EventSource

Or for image generation:

POST /api/images
      |
      v
{ jobId: "img_123" }

GET /api/images/img_123/events
      |
      v
EventSource

Benefits:

• Native SSE parser.
• Automatic reconnect.
• Supports Last-Event-ID.
• Simple GET subscription.

Limitation:

EventSource is primarily GET-oriented and does not provide the same arbitrary POST-body/header control as fetch().

4. Shared AI Event Contract

A staff-level implementation should avoid raw string streams.

export type AIEvent =
  | {
      type: 'response.created';
      responseId: string;
      sequence: number;
    }
  | {
      type: 'text.delta';
      responseId: string;
      sequence: number;
      delta: string;
    }
  | {
      type: 'tool.started';
      responseId: string;
      sequence: number;
      toolCallId: string;
      tool: string;
    }
  | {
      type: 'tool.completed';
      responseId: string;
      sequence: number;
      toolCallId: string;
    }
  | {
      type: 'image.progress';
      jobId: string;
      sequence: number;
      progress: number;
    }
  | {
      type: 'image.preview';
      jobId: string;
      sequence: number;
      revision: number;
      previewUrl: string;
    }
  | {
      type: 'image.completed';
      jobId: string;
      sequence: number;
      imageUrl: string;
    }
  | {
      type: 'response.completed';
      responseId: string;
      sequence: number;
    }
  | {
      type: 'response.failed';
      responseId: string;
      sequence: number;
      error: string;
    };

Key properties:

responseId / jobId
    -> identity

sequence
    -> ordering
    -> duplicate suppression
    -> reconnect checkpoint

type
    -> event routing

5. React Text Streaming with fetch() + requestAnimationFrame

The goal is to decouple:

NETWORK UPDATE RATE
from
REACT RENDER RATE

Without batching:

token
  -> setState
  -> render

token
  -> setState
  -> render

With RAF:

token
token
token
token
  |
  v
pendingTextRef
  |
  v
requestAnimationFrame
  |
  v
ONE setState
  |
  v
React render

import { useCallback, useEffect, useRef, useState } from 'react';

type StreamStatus = 'idle' | 'connecting' | 'streaming' | 'completed' | 'cancelled' | 'error';

type TextDeltaEvent = {
  type: 'text.delta';
  responseId: string;
  sequence: number;
  delta: string;
};

type CompletedEvent = {
  type: 'response.completed';
  responseId: string;
  sequence: number;
};

type FailedEvent = {
  type: 'response.failed';
  responseId: string;
  sequence: number;
  error: string;
};

type StreamEvent = TextDeltaEvent | CompletedEvent | FailedEvent;

export function StreamingTextExample() {
  const [text, setText] = useState('');
  const [status, setStatus] = useState<StreamStatus>('idle');

  const controllerRef = useRef<AbortController | null>(null);

  const responseIdRef = useRef<string | null>(null);

  const pendingTextRef = useRef('');
  const lastSequenceRef = useRef(0);
  const rafRef = useRef<number | null>(null);

  const scheduleRender = useCallback(() => {
    if (rafRef.current !== null) return;

    rafRef.current = requestAnimationFrame(() => {
      setText(pendingTextRef.current);
      rafRef.current = null;
    });
  }, []);

  const flushRender = useCallback(() => {
    if (rafRef.current !== null) {
      cancelAnimationFrame(rafRef.current);
      rafRef.current = null;
    }

    setText(pendingTextRef.current);
  }, []);

  const applyEvent = useCallback(
    (event: StreamEvent) => {
      if (event.sequence <= lastSequenceRef.current) {
        return;
      }

      lastSequenceRef.current = event.sequence;

      switch (event.type) {
        case 'text.delta':
          pendingTextRef.current += event.delta;
          scheduleRender();
          return;

        case 'response.completed':
          flushRender();
          setStatus('completed');
          return;

        case 'response.failed':
          throw new Error(event.error);
      }
    },
    [flushRender, scheduleRender]
  );

  const sendPrompt = useCallback(
    async (prompt: string) => {
      controllerRef.current?.abort();

      const controller = new AbortController();
      controllerRef.current = controller;

      pendingTextRef.current = '';
      lastSequenceRef.current = 0;
      responseIdRef.current = null;

      setText('');
      setStatus('connecting');

      try {
        const response = await fetch('/api/chat', {
          method: 'POST',
          headers: {
            'Content-Type': 'application/json',
          },
          body: JSON.stringify({ prompt }),
          signal: controller.signal,
        });

        if (!response.ok || !response.body) {
          throw new Error(`HTTP ${response.status}`);
        }

        setStatus('streaming');

        const reader = response.body.getReader();
        const decoder = new TextDecoder();

        let buffer = '';

        while (true) {
          const { value, done } = await reader.read();

          if (done) break;

          buffer += decoder.decode(value, {
            stream: true,
          });

          const parsed = parseSSEBuffer(buffer);
          buffer = parsed.remaining;

          for (const event of parsed.events) {
            responseIdRef.current = event.responseId;
            applyEvent(event);
          }
        }

        flushRender();

        setStatus((current) => (current === 'streaming' ? 'completed' : current));
      } catch (error) {
        if (controller.signal.aborted) {
          flushRender();
          setStatus('cancelled');
          return;
        }

        console.error(error);
        setStatus('error');
      }
    },
    [applyEvent, flushRender]
  );

  const stop = useCallback(async () => {
    controllerRef.current?.abort();
    flushRender();

    const responseId = responseIdRef.current;

    if (responseId) {
      try {
        await fetch(`/api/responses/${responseId}/cancel`, { method: 'POST' });
      } catch {
        // Best effort.
      }
    }

    setStatus('cancelled');
  }, [flushRender]);

  useEffect(() => {
    return () => {
      controllerRef.current?.abort();

      if (rafRef.current !== null) {
        cancelAnimationFrame(rafRef.current);
      }
    };
  }, []);

  return (
    <section>
      <button onClick={() => sendPrompt('Explain React concurrency')}>Ask</button>

      <button onClick={stop}>Stop</button>

      <p>Status: {status}</p>

      <article>{text}</article>
    </section>
  );
}

function parseSSEBuffer(buffer: string): {
  events: StreamEvent[];
  remaining: string;
} {
  const blocks = buffer.split('\n\n');
  const remaining = blocks.pop() ?? '';
  const events: StreamEvent[] = [];

  for (const block of blocks) {
    const event = parseSSEEvent(block);

    if (event) {
      events.push(event);
    }
  }

  return {
    events,
    remaining,
  };
}

function parseSSEEvent(block: string): StreamEvent | null {
  const lines = block.split('\n');

  let eventType = '';
  let data = '';

  for (const line of lines) {
    if (line.startsWith('event:')) {
      eventType = line.slice(6).trim();
    }

    if (line.startsWith('data:')) {
      data += line.slice(5).trim();
    }
  }

  if (!eventType || !data) {
    return null;
  }

  const payload = JSON.parse(data);

  return {
    ...payload,
    type: eventType,
  } as StreamEvent;
}

6. Why requestAnimationFrame Helps Text Streaming

If the server emits many chunks each second, the browser does not need a React render for every chunk.

Network:
  1 2 3 4 5 6 7 8 9 ...

Ref:
  accumulate latest text

Browser paint:
      |       |       |
      v       v       v
    render  render  render

Key principle:

Network throughput should not directly determine React rendering throughput.

7. EventSource Text Streaming

import { useEffect, useRef, useState } from 'react';

export function EventSourceText({ responseId }: { responseId: string }) {
  const [text, setText] = useState('');
  const [status, setStatus] = useState<'connecting' | 'streaming' | 'completed' | 'error'>(
    'connecting'
  );

  const pendingRef = useRef('');
  const rafRef = useRef<number | null>(null);
  const lastSequenceRef = useRef(0);

  useEffect(() => {
    const source = new EventSource(`/api/responses/${responseId}/events`);

    const scheduleRender = () => {
      if (rafRef.current !== null) return;

      rafRef.current = requestAnimationFrame(() => {
        setText(pendingRef.current);
        rafRef.current = null;
      });
    };

    source.addEventListener('text.delta', (raw) => {
      const data = JSON.parse((raw as MessageEvent).data);

      if (data.sequence <= lastSequenceRef.current) {
        return;
      }

      lastSequenceRef.current = data.sequence;
      pendingRef.current += data.delta;

      setStatus('streaming');
      scheduleRender();
    });

    source.addEventListener('response.completed', () => {
      if (rafRef.current !== null) {
        cancelAnimationFrame(rafRef.current);
        rafRef.current = null;
      }

      setText(pendingRef.current);
      setStatus('completed');
      source.close();
    });

    source.onerror = () => {
      // EventSource reconnects automatically.
      setStatus('connecting');
    };

    return () => {
      source.close();

      if (rafRef.current !== null) {
        cancelAnimationFrame(rafRef.current);
      }
    };
  }, [responseId]);

  return (
    <div>
      <p>{status}</p>
      <article>{text}</article>
    </div>
  );
}

8. Text Retry and Reconnect

A network disconnect does not necessarily mean generation failed.

LLM still generating
        |
        v
Backend still receiving tokens
        |
       XXX
Browser connection lost

Do not blindly create a new generation.

CREATE ONCE
   |
   v
responseId
   |
   +---- initial stream
   +---- reconnect stream
   +---- fetch canonical state

Resume API:

GET /api/responses/resp_123/events?after=105

Server-side event history can temporarily live in Redis:

response:resp_123

101 text.delta
102 text.delta
103 tool.started
104 tool.completed
105 text.delta
106 text.delta
107 response.completed

TTL: 5-15 minutes

9. Exponential Backoff Retry

function sleep(ms: number) {
  return new Promise((resolve) => setTimeout(resolve, ms));
}

function retryDelay(attempt: number) {
  const base = 500;
  const max = 10_000;

  const exponential = Math.min(max, base * 2 ** attempt);

  const jitter = Math.random() * 300;

  return exponential + jitter;
}

async function reconnectStream({
  responseId,
  after,
  signal,
}: {
  responseId: string;
  after: number;
  signal: AbortSignal;
}) {
  const maxAttempts = 5;

  for (let attempt = 0; attempt < maxAttempts; attempt++) {
    if (signal.aborted) {
      throw new DOMException('Aborted', 'AbortError');
    }

    try {
      const response = await fetch(`/api/responses/${responseId}/events?after=${after}`, {
        signal,
      });

      if (!response.ok) {
        throw new Error(`HTTP ${response.status}`);
      }

      return response;
    } catch (error) {
      if (signal.aborted) {
        throw error;
      }

      if (attempt === maxAttempts - 1) {
        throw error;
      }

      await sleep(retryDelay(attempt));
    }
  }

  throw new Error('Unable to reconnect');
}

10. Retry Classification

Retryable examples:

network disconnect
HTTP 408
HTTP 429
HTTP 502
HTTP 503
HTTP 504
temporary gateway failure

Usually not retryable:

HTTP 400 malformed prompt
HTTP 401 invalid auth
HTTP 403 forbidden
HTTP 404 invalid response/job id
content-policy rejection
invalid tool arguments

function isRetryableStatus(status: number) {
  return [408, 429, 502, 503, 504].includes(status);
}

For 429, honor Retry-After when available.

11. Abort vs Cancel

AbortController means:

Browser
   X
stop waiting / stop reading

It does not guarantee:

GPU / LLM inference stops.

Use explicit server cancellation:

POST /api/responses/resp_123/cancel

or:

POST /api/images/img_123/cancel

async function cancelResponse(responseId: string, controller: AbortController) {
  controller.abort();

  try {
    await fetch(`/api/responses/${responseId}/cancel`, {
      method: 'POST',
    });
  } catch {
    // Best effort.
  }
}

12. Cancellation Is Best Effort

There is always a race:

Client                   Server

cancel -------------------->

                         model finishes

                         persist result

<------------------- completed

Cancellation semantics:

queued
  -> remove from queue

running
  -> ask model/GPU provider to stop

completed
  -> too late

failed
  -> no-op

cancelled
  -> idempotent no-op

13. Image Generation Architecture

React
  |
  | POST /api/images
  v
AI Gateway
  |
  v
Job DB
  |
  v
Queue
  |
  v
GPU worker
  |
  +--------> progress events
  |
  +--------> preview asset
  |
  +--------> final asset
                  |
                  v
           Object Storage
                  |
                  v
                 CDN

The browser subscribes to:

queued
started
progress
preview
completed
failed
cancelled

The actual image is not streamed through the application server.

14. Image API Contract

POST /api/images
Content-Type: application/json
Idempotency-Key: 8c90...

{
  "prompt": "A futuristic city at sunset"
}

Response:

{
  "jobId": "img_123",
  "status": "queued"
}

Subscribe:

GET /api/images/img_123/events

Example events:

id: 1
event: generation.started
data: {"jobId":"img_123","sequence":1}

id: 2
event: generation.progress
data: {"jobId":"img_123","sequence":2,"progress":0.25}

id: 3
event: generation.preview
data: {"jobId":"img_123","sequence":3,"revision":1,"previewUrl":"https://cdn.example.com/img_123-preview-1.webp"}

id: 4
event: generation.progress
data: {"jobId":"img_123","sequence":4,"progress":0.75}

id: 5
event: generation.completed
data: {"jobId":"img_123","sequence":5,"imageUrl":"https://cdn.example.com/img_123-final.webp"}

15. Complete React Image Generation Example

import { useCallback, useEffect, useRef, useState } from 'react';

type ImageStatus = 'idle' | 'queued' | 'running' | 'completed' | 'cancelled' | 'error';

type ImageState = {
  status: ImageStatus;
  progress: number;
  previewUrl?: string;
  finalUrl?: string;
  error?: string;
};

export function ImageGenerator() {
  const [prompt, setPrompt] = useState('');

  const [state, setState] = useState<ImageState>({
    status: 'idle',
    progress: 0,
  });

  const jobIdRef = useRef<string | null>(null);

  const sourceRef = useRef<EventSource | null>(null);

  const lastSequenceRef = useRef(0);
  const latestRevisionRef = useRef(0);

  const pendingPreviewRef = useRef<string | null>(null);

  const rafRef = useRef<number | null>(null);

  const terminalRef = useRef(false);

  const schedulePreview = useCallback((previewUrl: string, revision: number) => {
    if (terminalRef.current) {
      return;
    }

    if (revision <= latestRevisionRef.current) {
      return;
    }

    latestRevisionRef.current = revision;
    pendingPreviewRef.current = previewUrl;

    if (rafRef.current !== null) {
      return;
    }

    rafRef.current = requestAnimationFrame(() => {
      rafRef.current = null;

      if (terminalRef.current) {
        return;
      }

      const preview = pendingPreviewRef.current;

      if (!preview) {
        return;
      }

      setState((current) => ({
        ...current,
        previewUrl: preview,
      }));
    });
  }, []);

  const clearPendingPreview = useCallback(() => {
    if (rafRef.current !== null) {
      cancelAnimationFrame(rafRef.current);

      rafRef.current = null;
    }

    pendingPreviewRef.current = null;
  }, []);

  const generateImage = useCallback(async () => {
    sourceRef.current?.close();
    clearPendingPreview();

    terminalRef.current = false;
    lastSequenceRef.current = 0;
    latestRevisionRef.current = 0;

    setState({
      status: 'queued',
      progress: 0,
    });

    try {
      const response = await fetch('/api/images', {
        method: 'POST',
        headers: {
          'Content-Type': 'application/json',
          'Idempotency-Key': crypto.randomUUID(),
        },
        body: JSON.stringify({
          prompt,
        }),
      });

      if (!response.ok) {
        throw new Error(`HTTP ${response.status}`);
      }

      const {
        jobId,
      }: {
        jobId: string;
      } = await response.json();

      jobIdRef.current = jobId;

      const source = new EventSource(`/api/images/${jobId}/events`);

      sourceRef.current = source;

      source.addEventListener('generation.started', (raw) => {
        const data = JSON.parse((raw as MessageEvent).data);

        if (data.sequence <= lastSequenceRef.current) {
          return;
        }

        lastSequenceRef.current = data.sequence;

        setState((current) => ({
          ...current,
          status: 'running',
        }));
      });

      source.addEventListener('generation.progress', (raw) => {
        const data = JSON.parse((raw as MessageEvent).data);

        if (data.sequence <= lastSequenceRef.current) {
          return;
        }

        lastSequenceRef.current = data.sequence;

        setState((current) => ({
          ...current,
          status: 'running',
          progress: data.progress,
        }));
      });

      source.addEventListener('generation.preview', (raw) => {
        const data = JSON.parse((raw as MessageEvent).data);

        if (data.sequence <= lastSequenceRef.current) {
          return;
        }

        lastSequenceRef.current = data.sequence;

        schedulePreview(data.previewUrl, data.revision);
      });

      source.addEventListener('generation.completed', (raw) => {
        const data = JSON.parse((raw as MessageEvent).data);

        if (data.sequence <= lastSequenceRef.current) {
          return;
        }

        lastSequenceRef.current = data.sequence;

        terminalRef.current = true;

        clearPendingPreview();

        setState({
          status: 'completed',
          progress: 1,
          previewUrl: undefined,
          finalUrl: data.imageUrl,
        });

        source.close();
      });

      source.addEventListener('generation.failed', (raw) => {
        const data = JSON.parse((raw as MessageEvent).data);

        terminalRef.current = true;

        clearPendingPreview();

        setState((current) => ({
          ...current,
          status: 'error',
          error: data.message,
        }));

        source.close();
      });

      source.onerror = () => {
        // EventSource normally reconnects.
        // Do not equate transport failure
        // with generation failure.
      };
    } catch (error) {
      terminalRef.current = true;
      clearPendingPreview();

      setState({
        status: 'error',
        progress: 0,
        error: error instanceof Error ? error.message : 'Unknown error',
      });
    }
  }, [clearPendingPreview, prompt, schedulePreview]);

  const cancelGeneration = useCallback(async () => {
    terminalRef.current = true;

    sourceRef.current?.close();
    clearPendingPreview();

    const jobId = jobIdRef.current;

    if (jobId) {
      try {
        await fetch(`/api/images/${jobId}/cancel`, {
          method: 'POST',
        });
      } catch {
        // Best effort.
      }
    }

    setState((current) => ({
      ...current,
      status: 'cancelled',
    }));
  }, [clearPendingPreview]);

  useEffect(() => {
    return () => {
      sourceRef.current?.close();
      clearPendingPreview();
    };
  }, [clearPendingPreview]);

  return (
    <section>
      <input
        value={prompt}
        onChange={(event) => setPrompt(event.target.value)}
        placeholder="Describe an image"
      />

      <button onClick={generateImage}>Generate</button>

      <button onClick={cancelGeneration}>Cancel</button>

      {state.status === 'running' && <p>Generating {Math.round(state.progress * 100)}%</p>}

      {state.previewUrl && !state.finalUrl && (
        <img src={state.previewUrl} alt="Generation preview" width={500} />
      )}

      {state.finalUrl && <img src={state.finalUrl} alt="Generated result" width={500} />}

      {state.error && <p>{state.error}</p>}
    </section>
  );
}

16. Why requestAnimationFrame for Images?

It is not always necessary.

If image events are:

10%
25%
50%
75%
100%

normal setState is fine.

RAF becomes useful when the backend produces frequent progressive previews.

preview 1
preview 2
preview 3
preview 4
    |
    v
latest preview ref
    |
    v
requestAnimationFrame
    |
    v
render preview 4

The UI only needs the most recent visual state.

17. Image Preview Race Condition

sequence 20 -> preview A
sequence 21 -> preview B
sequence 22 -> FINAL IMAGE

RAF callback for preview B
has not executed yet

Without protection:

final image rendered
      |
      v
old RAF callback runs
      |
      v
preview B overwrites UI

Protect final state:

terminalRef.current = true;

if (rafRef.current !== null) {
  cancelAnimationFrame(rafRef.current);
}

pendingPreviewRef.current = null;

setState({
  status: 'completed',
  finalUrl: imageUrl,
});

Also guard the RAF callback:

requestAnimationFrame(() => {
  if (terminalRef.current) {
    return;
  }

  // update preview
});

18. Image Retry Strategy

Do not create a new generation job merely because SSE disconnected.

Wrong:

POST image
   |
   v
job 123

SSE disconnect

POST image AGAIN
   |
   v
job 124

Better:

POST image
   |
   v
job 123
   |
   +---- EventSource connection #1
   |
   X network disconnect
   |
   +---- EventSource reconnect
   |
   +---- GET job state

Fallback:

GET /api/images/img_123

{
  "jobId": "img_123",
  "status": "running",
  "progress": 0.64,
  "lastSequence": 18,
  "previewUrl": "https://cdn.example.com/preview-4.webp"
}

19. Idempotency for Image Job Creation

Failure case:

Browser
   |
   | POST /images
   v
Server creates job 123
   |
   X response lost

Retrying without idempotency may create job 124.

Use:

Idempotency-Key: user-action-abc

Server enforces:

(user, idempotency_key)
         |
         v
unique constraint

async function createImageJob(userId: string, idempotencyKey: string, request: ImageRequest) {
  const existing = await db.jobs.findByKey(userId, idempotencyKey);

  if (existing) {
    return existing;
  }

  return db.transaction(async () => {
    return db.jobs.create({
      userId,
      idempotencyKey,
      request,
      status: 'queued',
    });
  });
}

20. EventSource Reconnection

Server may send:

retry: 3000

Each event can include:

id: 42
event: generation.progress
data: {...}

On reconnect the browser can send:

Last-Event-ID: 42

Frontend should still dedupe:

if (event.sequence <= lastSequenceRef.current) {
  return;
}

Never assume exactly-once delivery.

21. Polling Fallback

async function pollJob(jobId: string, signal: AbortSignal) {
  while (!signal.aborted) {
    const response = await fetch(`/api/images/${jobId}`, { signal });

    const job = await response.json();

    if (job.status === 'completed') {
      return job;
    }

    if (job.status === 'failed' || job.status === 'cancelled') {
      throw new Error(job.error ?? job.status);
    }

    await sleep(2000);
  }
}

Tradeoff:

SSE
+ lower latency
+ fewer requests
+ event oriented

Polling
+ operationally simple
+ easy fallback
- extra requests
- update latency

22. Control Plane vs Asset Plane

Avoid:

{
  "type": "image.completed",
  "base64": "....50MB...."
}

Prefer:

{
  "type": "image.completed",
  "assetId": "asset_456",
  "imageUrl": "https://cdn.example.com/image.webp"
}

CONTROL PLANE

AI Service
   |
   | small events
   v
SSE
   |
   v
Browser


ASSET PLANE

GPU
 |
 v
Object Storage
 |
 v
CDN
 |
 v
Browser <img>

23. Should We Stream Binary Images Through WebSocket?

Technically possible:

GPU
 |
 v
App server
 |
 | WebSocket binary frame
 v
Browser

Usually better:

GPU
 |
 v
Object Storage
 |
 v
CDN
 |
 v
Browser

WebSocket should be chosen because the interaction is bidirectional, not merely because the output is binary.

24. Text vs Image State Model

Text:

type TextResponse = {
  responseId: string;

  status: 'streaming' | 'completed' | 'cancelled' | 'failed';

  text: string;

  lastSequence: number;
};

Image:

type ImageGeneration = {
  jobId: string;

  status: 'queued' | 'running' | 'completed' | 'cancelled' | 'failed';

  progress: number;

  previewUrl?: string;

  previewRevision: number;

  finalUrl?: string;

  lastSequence: number;
};

Mental model:

Text:
append

Image:
replace / transition

25. Retry State Machine

              +-------------+
              |    IDLE     |
              +------+------+
                     |
                   send
                     |
                     v
              +-------------+
              | CONNECTING  |
              +------+------+
                     |
                  connected
                     |
                     v
              +-------------+
              | STREAMING   |
              +------+------+
                     |
        +------------+------------+
        |            |            |
     complete    disconnect     cancel
        |            |            |
        v            v            v
   COMPLETED    RECONNECTING   CANCELLED
                     |
              +------+------+
              |             |
           success       max retry
              |             |
              v             v
          STREAMING       ERROR

For image generation:

transport = reconnecting
generation = running

is valid.

26. Separate Transport State from Domain State

type ConnectionStatus = 'disconnected' | 'connecting' | 'connected' | 'reconnecting';

type GenerationStatus = 'queued' | 'running' | 'completed' | 'failed' | 'cancelled';

Do not collapse them into a single ambiguous status.

27. React Cleanup

For fetch:

useEffect(() => {
  return () => {
    controller.abort();
  };
}, []);

For EventSource:

useEffect(() => {
  const source = new EventSource(url);

  return () => {
    source.close();
  };
}, [url]);

For RAF:

useEffect(() => {
  return () => {
    if (rafRef.current !== null) {
      cancelAnimationFrame(rafRef.current);
    }
  };
}, []);

28. React Strict Mode

Development Strict Mode may expose duplicate subscription bugs.

Dangerous:

useEffect(() => {
  const source = new EventSource(url);

  // no cleanup
}, []);

Correct:

useEffect(() => {
  const source = new EventSource(url);

  return () => {
    source.close();
  };
}, [url]);

29. Backpressure and Rendering

LLM
  |
  | many chunks/sec
  v
JS ingestion
  |
  v
Ref/buffer
  |
  | browser paint cadence
  v
React

RAF is a UI-level backpressure mechanism.

30. Markdown Streaming

Intermediate markdown may be incomplete.

"```jav"

then

"ascript
const x ="

then

" 42;
```"

Consider lightweight rendering while streaming and expensive syntax highlighting only after completion.

31. Error Handling UX

Distinguish:

generation failed

from:

connection temporarily lost

A better UI may say:

Generating image... 67%

Connection interrupted.
Reconnecting...

rather than:

Generation failed.

32. Retry Budget

type RetryPolicy = \{
  maxAttempts: number;
  maxElapsedMs: number;
\};

const retryPolicy = \{
  maxAttempts: 5,
  maxElapsedMs: 30_000,
\};

Avoid infinite aggressive retries.

33. Observability

Frontend telemetry:

response_id
job_id
connection_id
attempt
last_sequence
time_to_first_token
time_to_first_preview
time_to_complete
reconnect_count
cancel_requested
cancel_acknowledged
render_batch_count
error_type

Useful metrics:

TTFT
Time To First Token

TTFP
Time To First Preview

Generation latency
SSE disconnect rate
Reconnect success rate
Duplicate event rate
Cancellation latency
User-abandon rate

34. Security Considerations

For protected generated assets, prefer short-lived signed CDN URLs or authenticated asset access.

Validate:

• job ownership,
• tenant ownership,
• asset scope,
• URL expiration,
• moderation state.

35. Staff-Level API Shape

Text:

POST /api/responses
POST /api/responses/:id/cancel
GET  /api/responses/:id
GET  /api/responses/:id/events

Image:

POST /api/images
POST /api/images/:id/cancel
GET  /api/images/:id
GET  /api/images/:id/events

This cleanly separates:

COMMAND APIs

from:

STATE / STREAM APIs

36. Staff Interview: Text vs Image Answer

For text generation, I generally use HTTP POST plus a streaming response because the interaction is asymmetric: one client request followed by token, tool, citation, and completion events. On the frontend I ingest deltas into a ref and use requestAnimationFrame to batch React rendering, so network event frequency does not control render frequency.

For image generation I use a durable asynchronous job. The initial POST returns a jobId; EventSource or SSE carries lifecycle, progress, and preview events, while the final binary goes to object storage/CDN. The stream returns an asset URL rather than transporting the binary through the application server.

For reliability, both protocols use stable IDs, monotonic sequence numbers, dedupe, reconnect/resume, canonical GET state, explicit cancellation, and idempotency keys. I distinguish aborting the browser connection from cancelling server inference because stopping consumption does not necessarily stop model compute.

37. Staff Interview: Retry Deep Dive

I treat connection failure separately from generation failure. If I already have a responseId or jobId, I do not create a new model request. I reconnect to the existing resource using the last processed sequence number or Last-Event-ID. The frontend ignores duplicate sequences. If the event history is no longer available, I fetch canonical state through GET /responses/:id or GET /images/:id and resume from the server's last known sequence. Retries use bounded exponential backoff with jitter, and I only retry transient errors.

38. Staff Interview: Abort Deep Dive

AbortController terminates the browser-side fetch or stream consumption, but it does not guarantee that inference stopped. I pair local abort with an explicit idempotent server cancellation endpoint. The backend then cancels queued work immediately or performs best-effort cancellation for a running model/GPU request. This matters for both cost and resource utilization.

39. Staff Interview: requestAnimationFrame Deep Dive

I use requestAnimationFrame as UI backpressure. The network may deliver many small deltas between browser paints. I accumulate canonical text in a ref and schedule at most one pending RAF callback. Multiple network events therefore collapse into one React update synchronized with the browser's paint cycle. For image generation, the same pattern can coalesce high-frequency progressive previews; when the final asset arrives, I cancel any pending preview RAF so stale preview state cannot overwrite the final image.

40. Final Mental Model

                    AI FRONTEND RUNTIME
                           |
            +--------------+--------------+
            |                             |
         Commands                       Streams
            |                             |
            v                             v
       POST response                 SSE / EventSource
       POST image                         |
       POST cancel                        v
                                   Typed AI Events
                                          |
                      +-------------------+-------------------+
                      |                   |                   |
                      v                   v                   v
                Text Reducer         Tool Reducer       Asset Reducer
                      |                                       |
                      v                                       v
              pendingTextRef                         pendingPreviewRef
                      |                                       |
                      v                                       v
          requestAnimationFrame                  requestAnimationFrame
                      |                                       |
                      v                                       v
                 React render                           React render
                                                              |
                                                              v
                                                      CDN image/video

Interview principles:

1. Separate command from stream.
2. Separate connection state from generation state.
3. Give every generation stable identity.
4. Use monotonic sequence numbers.
5. Treat delivery as at-least-once and dedupe.
6. Resume existing work instead of regenerating.
7. Use bounded retry with backoff + jitter.
8. Abort client consumption AND cancel server inference.
9. Batch high-frequency UI updates.
10. Keep large generated assets out of SSE.
11. Use object storage + CDN for images/video.
12. Make cancellation and job creation idempotent.
13. Protect final state from stale async callbacks.
14. Instrument latency, reconnects, cancellation, and failures.
